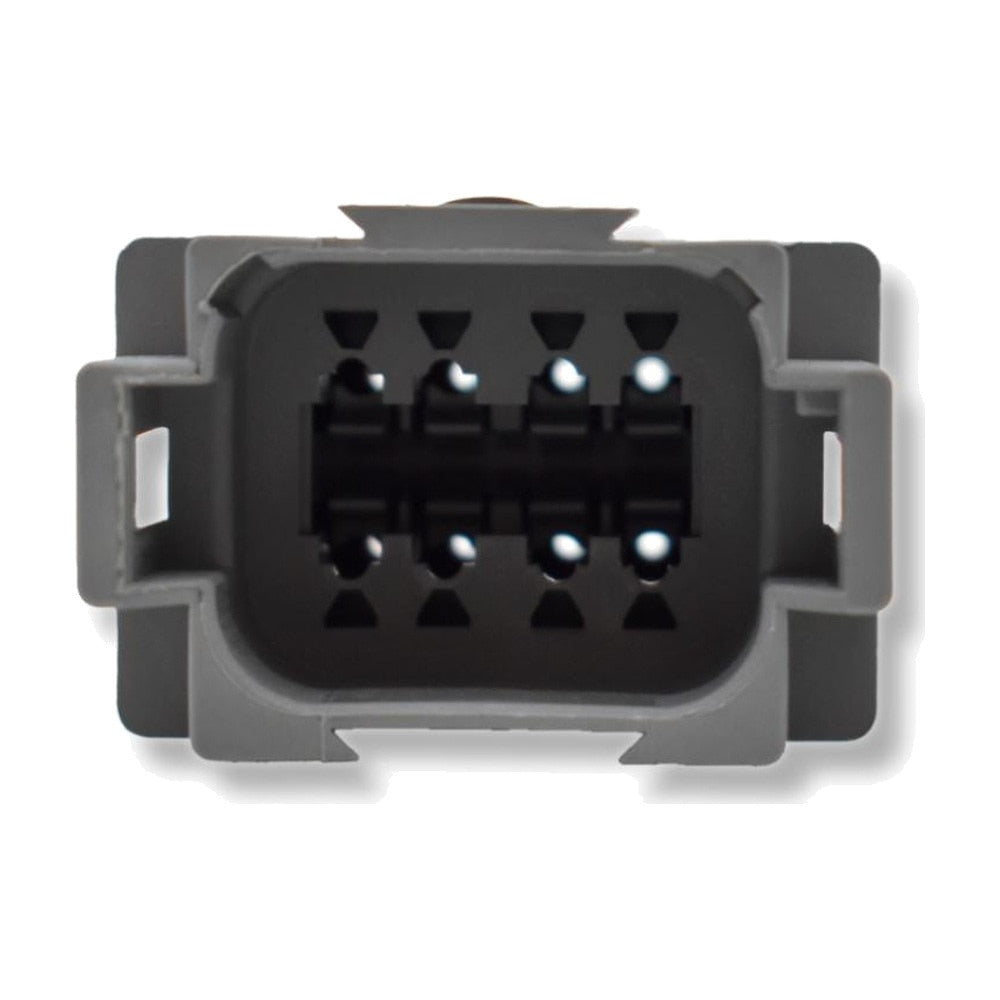

Bluewater 8 Position DT Male Connector with Wedge Lock, No Key, Deutsch Compatible

Bluewater 8 Position DT Male Connector with Wedge Lock, No Key, Deutsch Compatible

Model: DT04-8P

• 8-Cavity DT Receptacle - Male half of an 8-position DT connection; mates with the DT06-08SA female plug.
• Deutsch Compatible - Fully interchangeable with matching Deutsch DT parts.
• 13A Per Contact - Delivers up to 13 amps continuously.
• Wedge Lock Included - Secures terminals in the housing for a positive, vibration-resistant lock.
• Harsh-Environment Build - Rugged housing, corrosion-resistant contacts and a reliable locking mechanism.

The Bluewater DT04-8P is an 8-position DT series male connector that forms a secure, weather-resistant connection with the matching DT06-08SA female connector.

It's ideal for marine, automotive and industrial wiring applications.

Specifications

Series	DT (Deutsch compatible)
Positions	8
Gender	Male (receptacle)
Mates With	DT06-08SA
Current Rating	13A continuous per contact
Contacts	DT male, 14AWG (solid machined or stamped crimp)
Keying	No key
Wedge Lock	Included

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196333161

Model Number: DT04-8P
