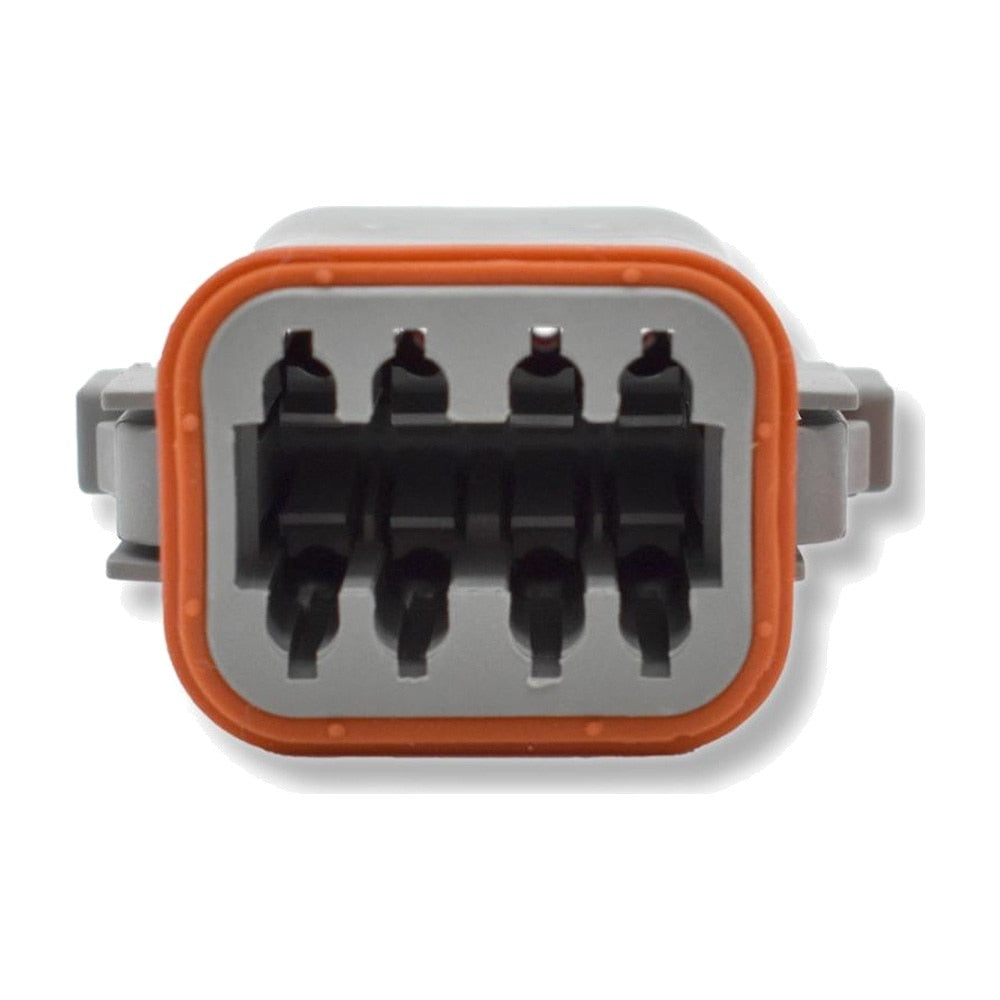

Bluewater 8 Position DT Female Connector with Wedge Lock, No Key, Deutsch Compatible

Bluewater 8 Position DT Female Connector with Wedge Lock, No Key, Deutsch Compatible

Model: DT06-08SA

• 8-Cavity DT Plug - Female half of an 8-position DT connection; mates with the DT04-8P male receptacle.
• Deutsch Compatible - Fully interchangeable with matching Deutsch DT parts.
• 13A Per Contact - Delivers up to 13 amps continuously.
• Wedge Lock Included - Secures terminals in the housing for a positive, vibration-resistant lock.
• Harsh-Environment Build - Rugged housing, corrosion-resistant contacts and a reliable locking mechanism.

The Bluewater DT06-08SA is an 8-position DT series female connector that forms a secure, weather-resistant connection with the matching DT04-8P male connector.

It's ideal for marine, automotive and industrial wiring applications.

Specifications

Series	DT (Deutsch compatible)
Positions	8
Gender	Female (plug)
Mates With	DT04-8P
Current Rating	13A continuous per contact
Contacts	DT female, 14-16AWG (machined or stamped and formed crimp)
Keying	No key
Wedge Lock	Included

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196333178

Model Number: DT06-08SA
