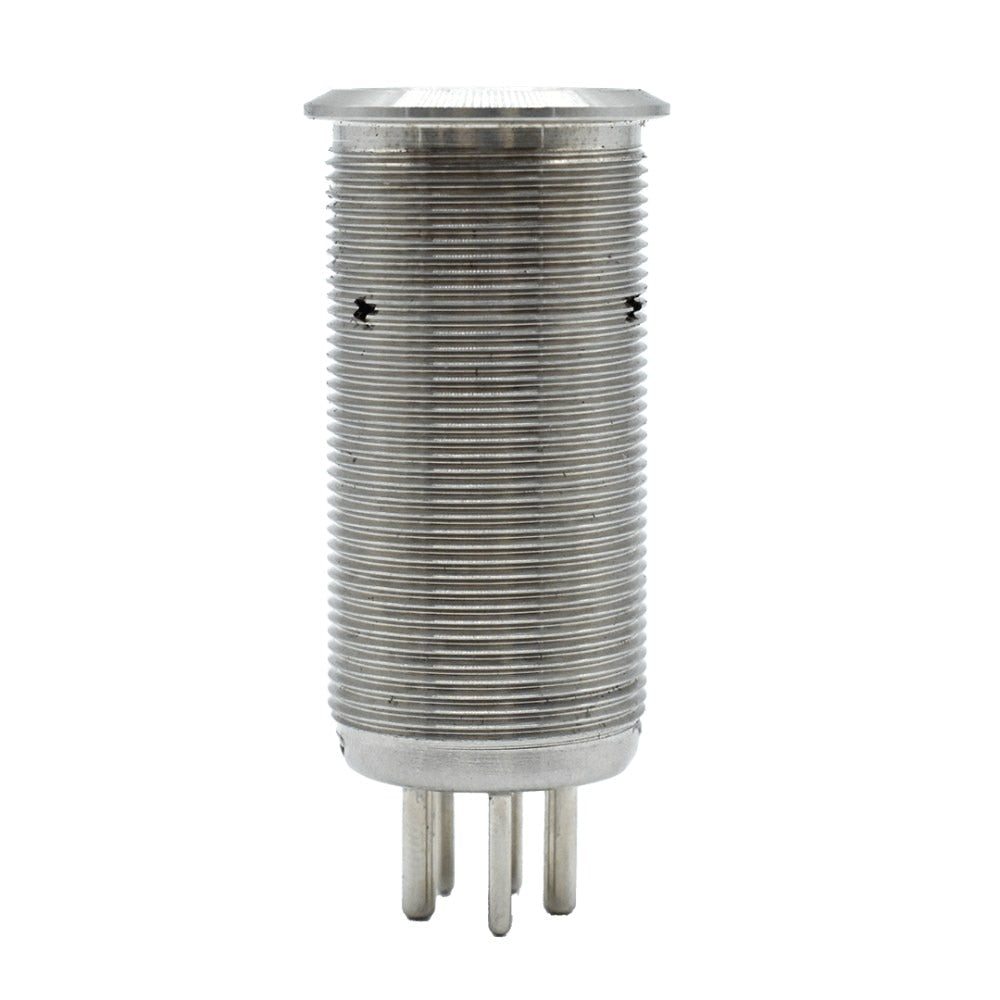

Bluewater 22mm Momentary Signal Switch for Digital Switching Systems

Bluewater 22mm Momentary Signal Switch for Digital Switching Systems

Model: 9059-2118

• Built for Digital Switching - Low-current signal switch for digital switching systems such as POCO, CZone and Garmin EmpirBus.
• Dry Contact Momentary - Press and hold to close the signal contacts; release to open.
• DayBright LEDs - Independent blue and red LEDs: blue ties to panel backlighting, red shows when the virtual switch is active.
• IP69K Waterproof - Sealed SS316 stainless steel body withstands salt spray, washdowns and submersion.
• Plug-In Installation - Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9059-2118 is a 22mm momentary signal switch that sends a low-current input to a digital switching system rather than powering a load directly. When the blue and red LEDs are both on, they combine to a purple glow.

Note: this is a signal-level switch with no built-in circuit protection. Do not use it to switch loads directly.

Installation: Drill a 22mm mounting hole and plug in a Bluewater 22mm Deutsch-style harness.

Specifications

Function	Off-(On) momentary, dry contact
Signal Current	Low-current signals only (under 240mA)
Voltage	Up to 30VDC
LED Indicators	Independent blue and red (DayBright)
Protection Rating	IP69K
Material	Nickel-plated brass / SS316 stainless steel
Mounting Hole	22mm
Connector	Deutsch-style (22mm harness 9053-3914 sold separately)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 10000521

Model Number: 9059-2118
