Bluewater 22mm Electronic Inrush Switch, Off/On, Bright Blue/Red LED

Bluewater 22mm Electronic Inrush Switch, Off/On, Bright Blue/Red LED

Model: 9059-1113-10

• Latching Off/On - Push once for on, push again for off.
• Bright LED - Blue backlight for night visibility that shifts to bright red when the circuit is on.
• Inrush Protection - Handles 120A surges for 120µs, so pumps and motors start without nuisance trips.
• IP69K Waterproof - Sealed SS316 stainless steel body withstands salt spray, washdowns and submersion.
• Plug-In Installation - Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

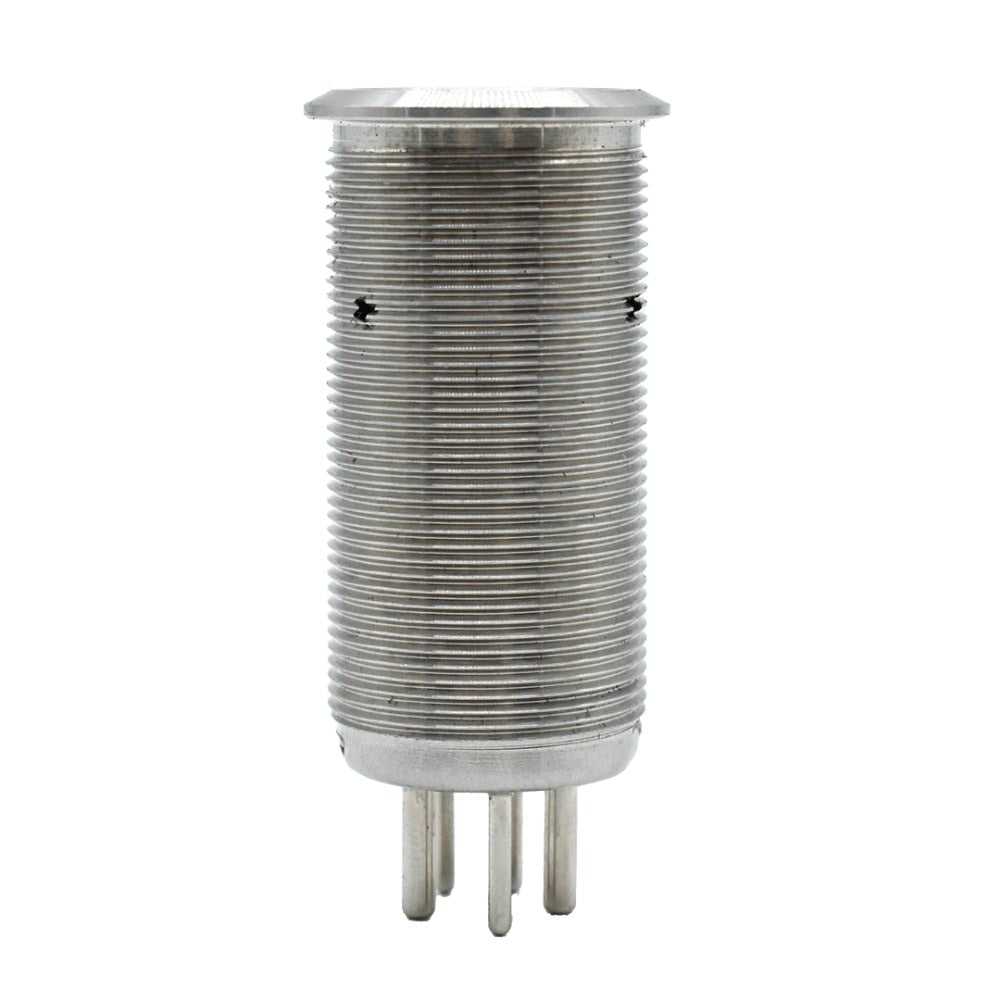

The Bluewater 9059-1113-10 is a 22mm electronic Off/On push button switch with inrush protection and a bright blue/red LED indicator.

The 9059 Series is built for demanding marine loads such as pumps and motors, with salt-spray testing and 20g shock resistance.

Installation: Drill a 22mm mounting hole and plug in a Bluewater 22mm Deutsch-style harness.

Specifications

Function	Off-On (latching)
LED Indicators	Blue off / Red on (bright)
Voltage/Current	20A @ 12-24VDC
Inrush Rating	120A for 120µs
Protection Rating	IP69K
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Mounting Hole	22mm
Connector	Deutsch-style (22mm harness 9053-3914 sold separately)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196330740

Model Number: 9059-1113-10
