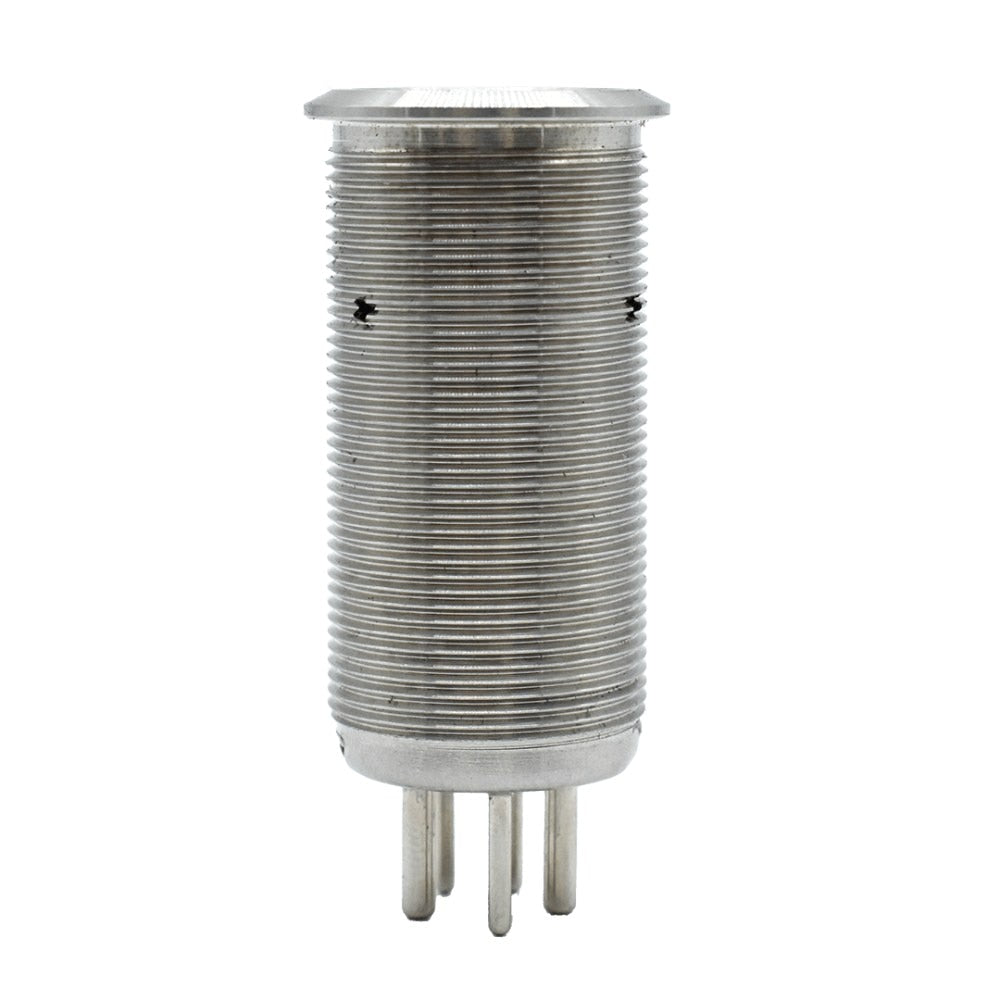

Bluewater 19mm Electronic Off-On-On Switch, Blue/Green/Red LED

Bluewater 19mm Electronic Off-On-On Switch, Blue/Green/Red LED

Model: 9057-3113

• Two Loads, One Switch - First press turns on Load 1, second press switches to Load 2, third press turns both off.
• Compact 19mm Design - Low-profile switch for tight dashboards and crowded panels.
• IP69K Waterproof - Sealed to withstand salt spray, washdowns and full submersion.
• SS316 Stainless Bezel - Corrosion-resistant construction for harsh marine environments.
• Plug-In Installation - Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9057-3113 controls two loads from a single 19mm push button, with a blue backlight when off, green for Load 1 and red for Load 2.

Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.

Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.

Specifications

Function	Off-On-On (latching, dual channel)
LED Indicators	Blue off / Green Load 1 / Red Load 2
Voltage/Current	7.5A per channel @ 12-24VDC
Protection Rating	IP69K
Mounting Hole	19mm, panels up to 6mm thick
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Connector	Deutsch-style (19mm harness 9057-4914 sold separately)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196330801

Model Number: 9057-3113
