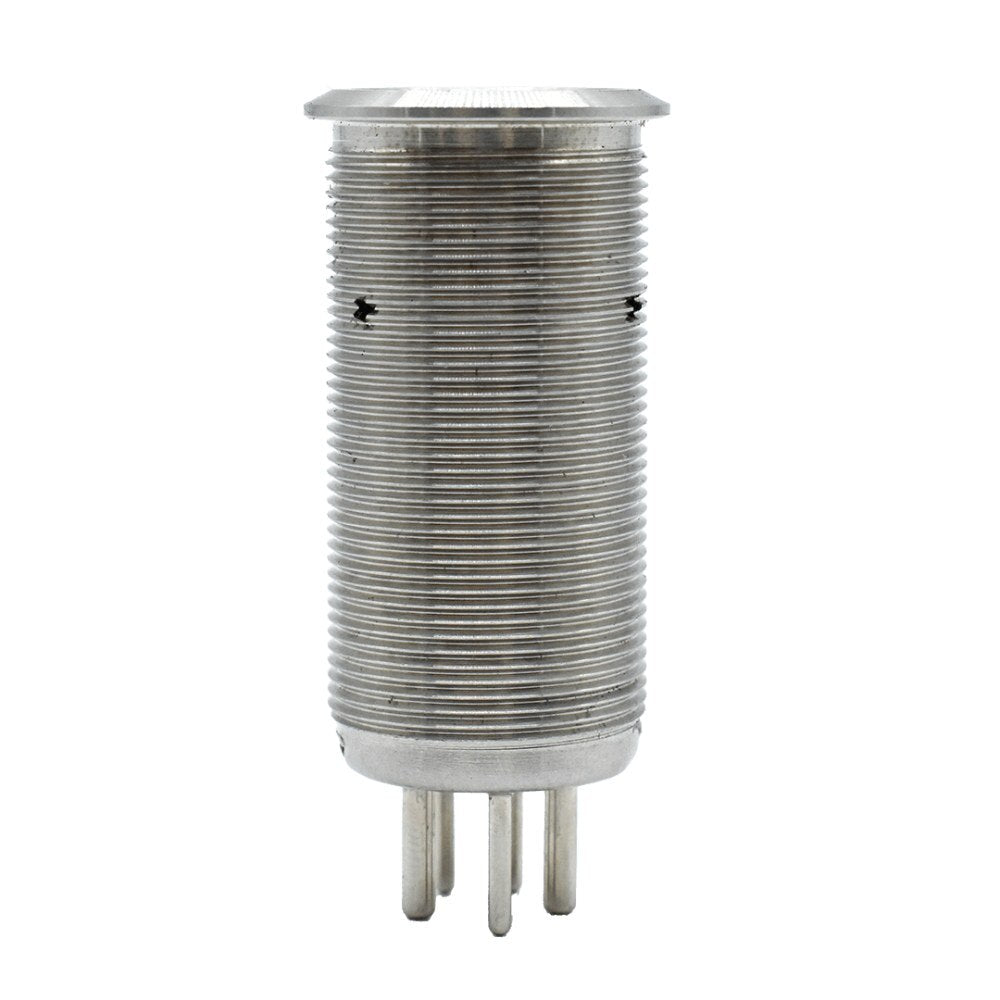

Bluewater 19mm Electronic Nav/Anchor Light Switch, Blue/Green/Red LED

Bluewater 19mm Electronic Nav/Anchor Light Switch, Blue/Green/Red LED

Model: 9057-3114

• Nav/Anchor Control - First press turns on nav and anchor lights, second press leaves only the anchor light on, third press turns both off.
• Compact 19mm Design - Low-profile switch for tight dashboards and crowded panels.
• IP69K Waterproof - Sealed to withstand salt spray, washdowns and full submersion.
• SS316 Stainless Bezel - Corrosion-resistant construction for harsh marine environments.
• Plug-In Installation - Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9057-3114 handles navigation and anchor lighting from one compact 19mm push button, with green showing nav + anchor, red showing anchor only and a blue backlight when off.

Built for boat builders, marine technicians and anyone upgrading an electrical system where space is limited, the 9057 Series features a fully detachable, customizable actuator.

Installation: Drill a 19mm hole (up to 6mm material thickness) and plug in a Bluewater 19mm Deutsch-style harness.

Specifications

Function	Nav/Anchor: Off - Nav + Anchor - Anchor only
LED Indicators	Blue off / Green nav + anchor / Red anchor only
Voltage/Current	7.5A per channel @ 12-24VDC
Protection Rating	IP69K
Mounting Hole	19mm, panels up to 6mm thick
Material	Nickel-plated brass / SS316 stainless steel
Mechanical Life	50,000 cycles
Electrical Life	10,000 cycles
Connector	Deutsch-style (19mm harness 9057-4914 sold separately)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Bluewater Enterprises

UPC: 810196330818

Model Number: 9057-3114
