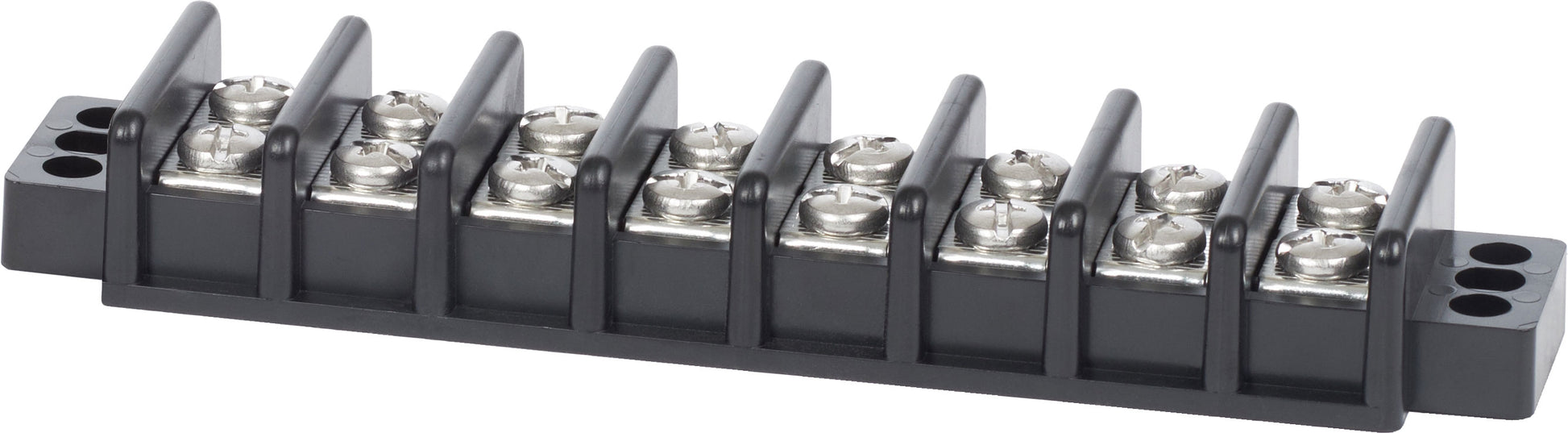

Blue Sea Terminal Block 30A 8 Circuit

Blue Sea Systems Terminal Block 30A - 8 Circuit

Model: 2508-BSS

• Closed back design completely insulates power from the mounting surface
• Each screw pair is one isolated circuit
• Jumpers allow creation of common circuits

Specifications

Circuits	8
Length	5.50in (139.7 mm)
Maximum Voltage	600V AC/DC
Continuous Rating	30A
Base Material	UL 94 V0, PC
Bus Material	Nickel-Plated Brass
Mounting Screw	#10 [M5]
Screw Material	Stainless Steel
Screw Terminal Torque	10 in-lb (1.13 Nm)
Terminal Screws	M4
Wire Terminal Size	#8 [M4]

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085025083

Model Number: 2508-BSS

Weight: 0.270000
