Blue Sea Systems

Blue Sea Oled Remote For P12 Battery Chargers

Blue Sea Oled Remote For P12 Battery Chargers

Regular price $225.87
Regular price Sale price $225.87
Sale Sold out

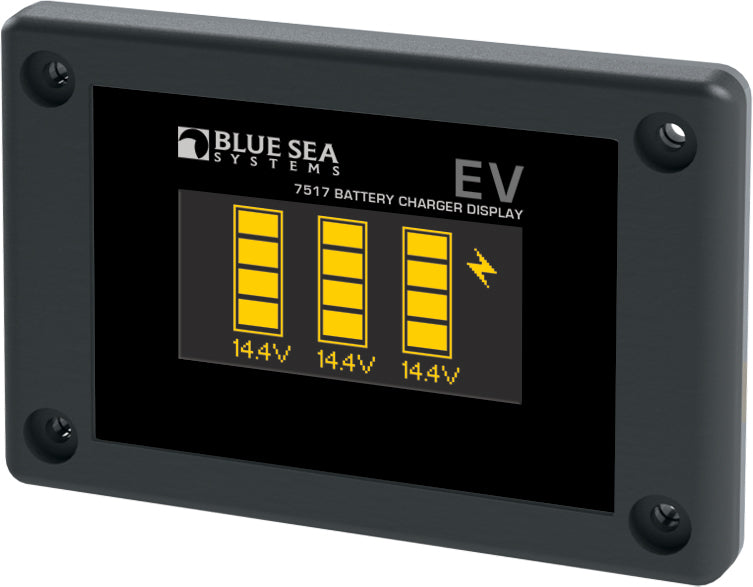

Blue Sea EV Battery Charger Display

Model: 7517-BSS
  • Drop in replacement for traditional rectangular displays
  • Automatically detects 1-3 battery banks
  • AC charge indication verifies that power is connected and the battery charger is charging
  • Plain language fault indication relays if there is a fault with the battery charger
  • Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
  • Displays voltage bar graphs even when AC power is not present
  • Optional standby mode shuts off screen after 4 hours of inactivity
  • Automatic ON based on motion with integrated knock sensor
  • Bright, daylight readable, OLED display

The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger’s Summary screen, displaying voltage, current charging stage, and faults from the charger.

Specifications
Accuracy +/- 1% at 36 Volts DC
Battery Inputs 3 with common reference
Display Size 55mm x 28mm
Display Type Yellow OLED
Input Voltage Range 6-36V DC
Maximum Current Draw 50mA
Minimum Current Draw <1mA in Standby Mode

What's in the Box:
  • EV Battery Charger Display
  • Mounting Gasket
  • Four Position Connector
  • 25ft (7.8m) Cat5e Cable
