Blue Sea Systems

Blue Sea M-series Battery Switch On/off/ Dual Circuit

Blue Sea M-series Battery Switch On/off/ Dual Circuit

Regular price $66.13
Regular price Sale price $66.13
Sale Sold out

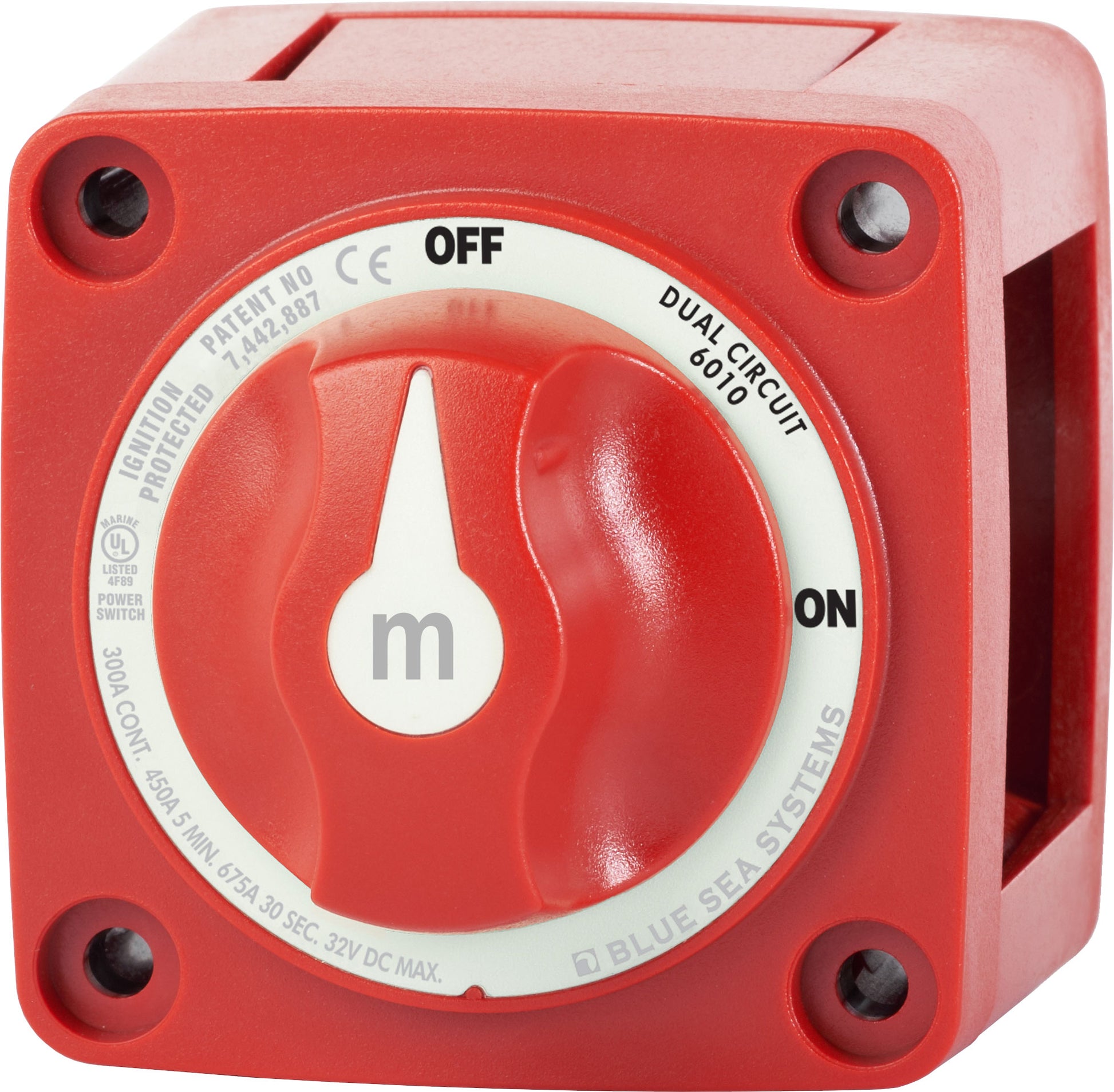

Blue Sea Systems m-Series Mini Dual Circuit Battery Switch - Red

Model: 6010-BSS
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8"" (M10) ring terminals
  • 7/8"" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Isolating cover with snap-on sections protects rear contacts
  • Case design allows surface or rear panel mounting
  • Waterproof — rated IP66 from water projected in powerful jets
  • One-piece stainless flange nuts ensure safe and secure connections
  • Breakout tabs allow wire access in any direction

Simultaneously switches two isolated battery banks

Specifications
Switch Type Dual Circuit
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect No
Maximum Voltage 32vDC
Stud Size 3/8""
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating 300A
Intermittent Rating 450A (5 min)
Cranking Rating 30 sec 675A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm )
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8"" - 16 (M10)
