Blue Sea M-series Battery Switch On/off Black With Knob
Blue Sea M-series Battery Switch On/off Black With Knob
Regular price
$39.72
Regular price
Sale price
$39.72
Unit price
/
per

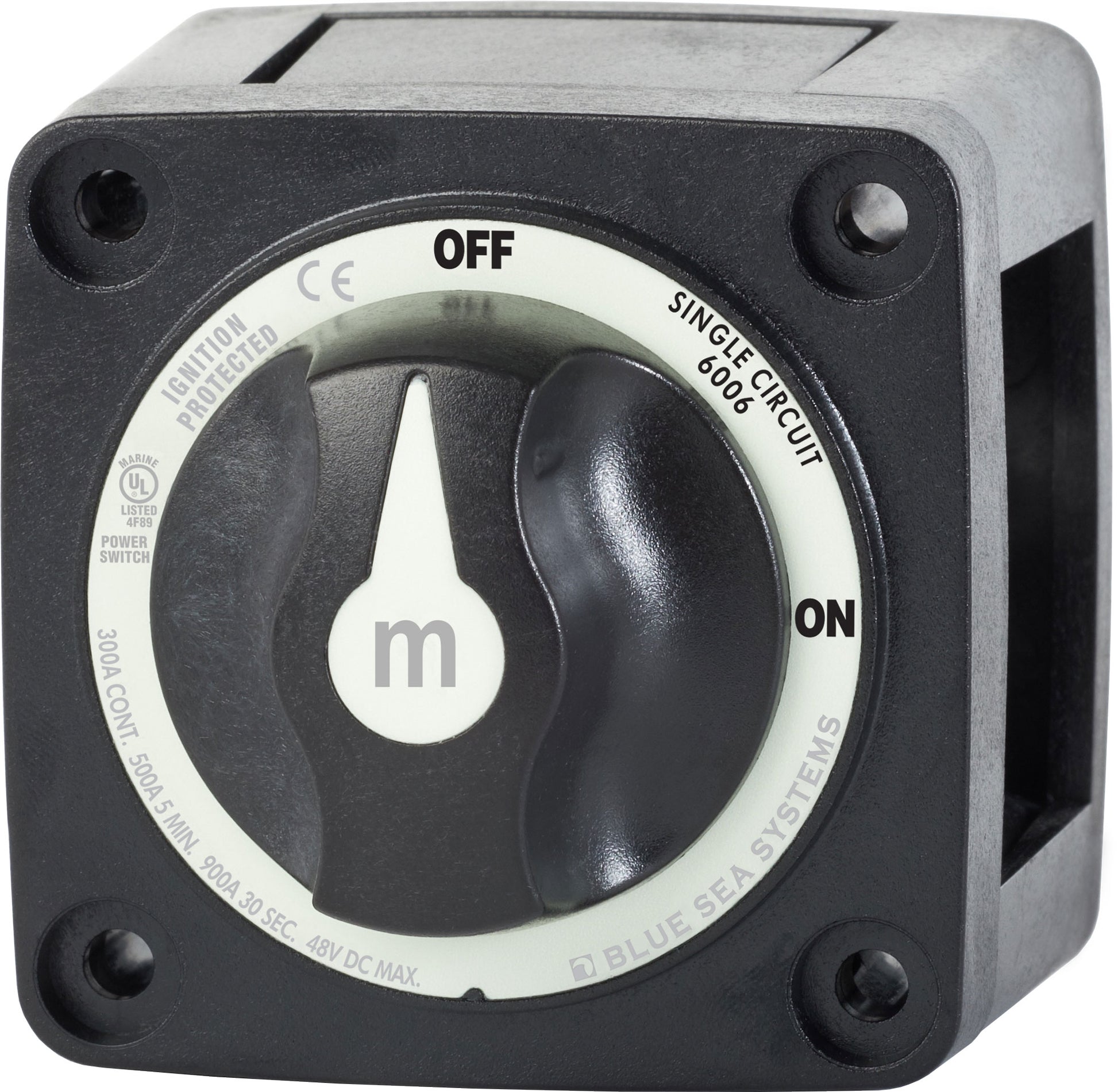

Blue Sea Systems m-Series Mini On-Off Battery Switch with Knob - Black
Model: 6006200-BSS- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8"" (M10) ring terminals
- 7/8"" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with snap-on sections protects rear contacts
- Case design allows surface, rear, or front panel mounting options
- Waterproof — rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
- Ignition protected—safe for installation aboard gasoline powered boats
Switches a single battery to a single load group
SpecificationsSwitch Type | Single Circuit ON-OFF |
Color | Black |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 48vDC |
Stud Size | 3/8"" |
Terminal Stud Torque | 120 in-lb (13.56 Nm) |
Continuous Rating | 300A |
Intermittent Rating | 500A (5 min) |
Cranking Rating 30 sec | 900A |
Battery Inputs | 1 |
Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm ) |
Mounting Holes | Accept #10 Screw |
Stud Material | Tinned Copper |
Stud Torque | 120 in-lb (13.56 Nm) |
Terminal Stud Size | 3/8"" - 16 (M10) |
