Blue Sea Systems
Blue Sea Hd-series Battery Switch On/off 600a
Blue Sea Hd-series Battery Switch On/off 600a
Regular price
$131.34
Regular price
Sale price
$131.34
Unit price
/
per

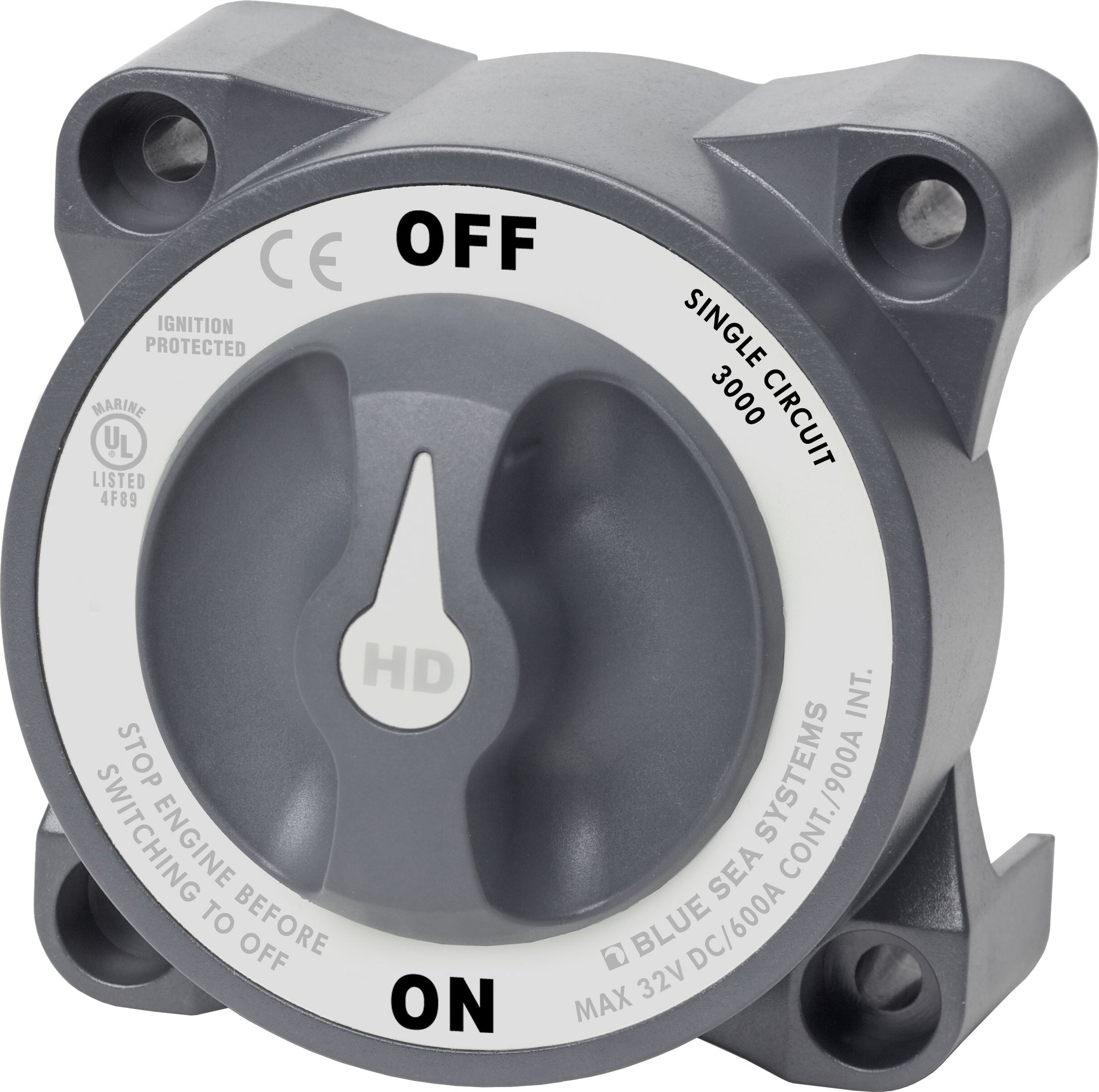

Blue Sea 3000 600A Battery Selector Switch On-Off
Model: 3000-BSS- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 1/2"" (M12) ring terminals
- 7/8"" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface, rear, or front panel mounting options
- Tactile indicator conveys knob position by feel
- Waterproof — rated IP66 from water projected in powerful jets
Switch Type | Single Circuit ON-OFF |
Color | Grey |
Switch Positions | 2 |
Battery Combine | No |
Alternator Field Disconnect | No |
Maximum Voltage | 32V DC |
Terminal Stud Torque | 220 in-lb (24.86 Nm) |
Continuous Rating | 600A |
Intermittent Rating | 900A (5 min) |
Cranking Rating 30 sec | 1750A |
Battery Inputs | 1 |
Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
Cable Quantity to Meet Ratings | Two Cables |
Cable Size to Meet Ratings | 4/0 AWG (120mm ) |
Mounting Holes | Accept 1/4"" (M6) Screw |
Terminal Stud Size | 1/2"" (M12) |
