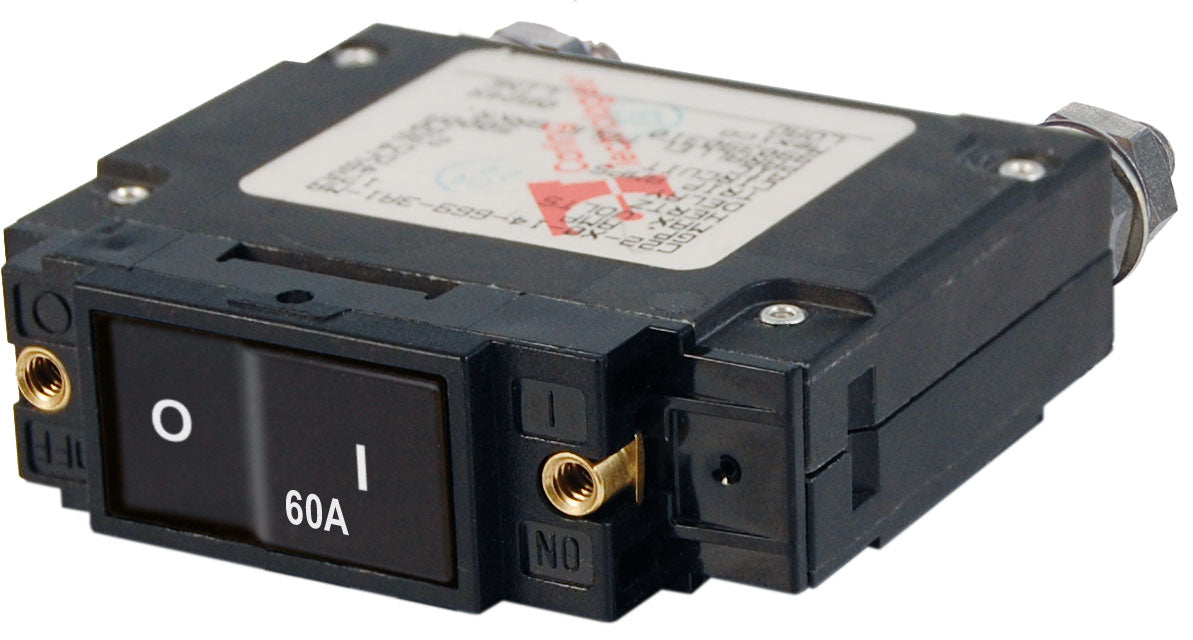

Blue Sea C-Series Flat Rocker Circuit Breaker Single Pole 60A

Blue Sea Systems C-Series Flat Rocker Circuit Breaker - Single Pole 60A

Model: 7547-BSS

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching
• Color actuator indicates "OFF" position
• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• "Trip Free"-cannot be held closed after trip
• Ignition protected-safe for installation aboard gasoline powered boats

Specifications

Amperage	60A AC / 60A DC
Actuator Style	Flat Rocker
Poles	1
Maximum Voltage	240V AC / 48V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Interrupt Capacity	3000A @ 120V AC, 5000A @ 32V DC
Minimum Operating Temperature	-40 deg C
Maximum Operating Temperature	85 deg C
Mounting Screw	6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10000
Weight	0.36lb (0.16 kg)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Brand: Blue Sea

UPC: 632085075477

Model Number: 7547-BSS

Weight: 0.36
