Blue Sea Systems

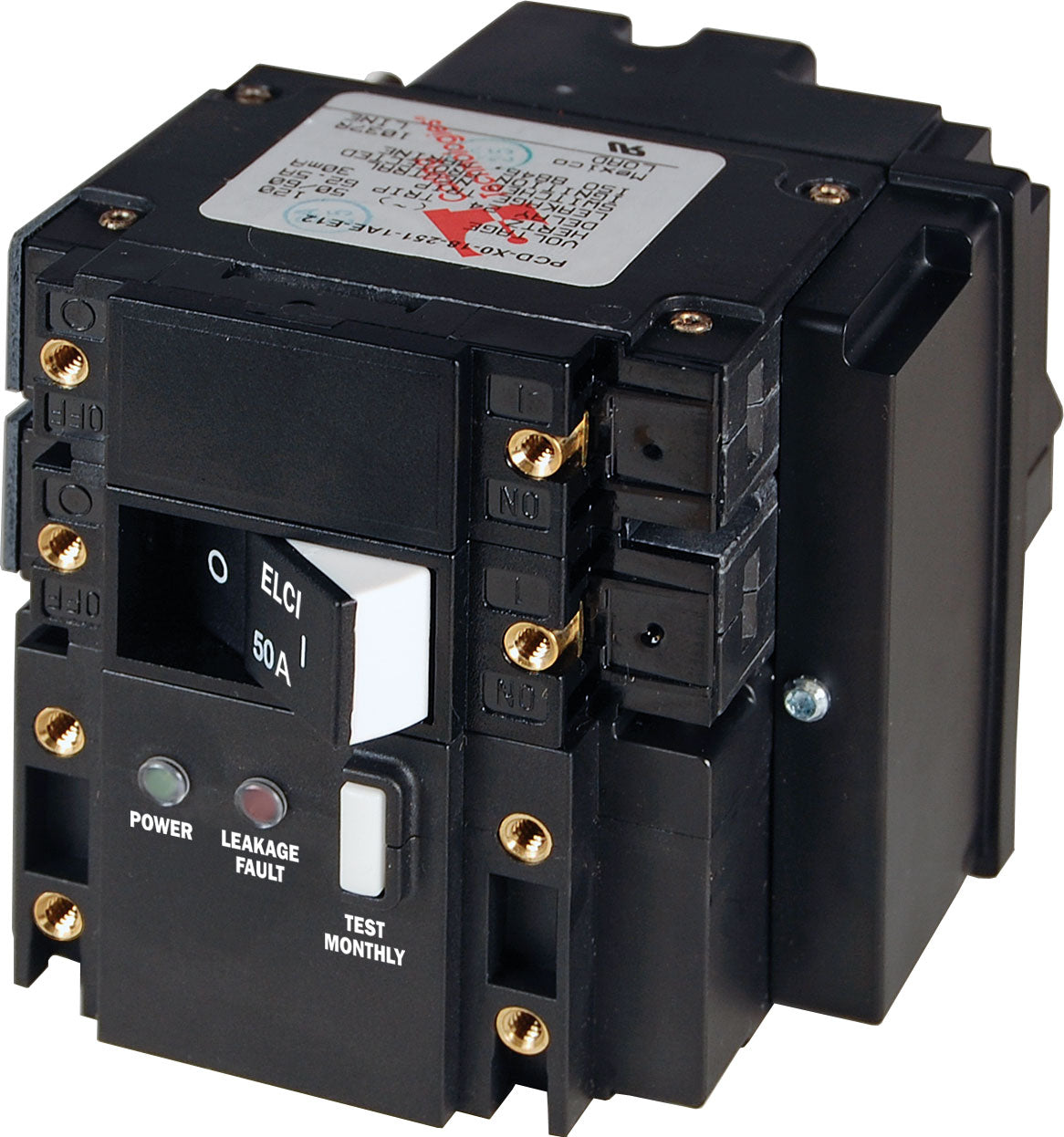

Blue Sea C-series Elci 50a 120v Ac Double Pole Main Circuit Breaker

Blue Sea C-series Elci 50a 120v Ac Double Pole Main Circuit Breaker

Regular price $591.45
Regular price Sale price $591.45
Sale Sold out

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A

Model: 3103-BSS
  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel
Specifications
Amperage 50A
Actuator Style Flat Rocker
Poles 2
Ignition Protected Yes
Maximum Voltage 120V AC per pole
Circuit Breaker Type Magnetic Hydraulic - trip free
Interrupt Capacity 5000a
Minimum Operating Temperature -35° C
Maximum Operating Temperature 66° C
Leakage Trip Amps 30mA
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Switching Cycles 10000
Weight 0.85lb (0.39 kg)
