Blue Sea Systems
Blue Sea C-series Elci 50a 120/240v Ac Double Pole Main Circuit Breaker
Blue Sea C-series Elci 50a 120/240v Ac Double Pole Main Circuit Breaker
Regular price
$661.83
Regular price
Sale price
$661.83
Unit price
per
Couldn't load pickup availability

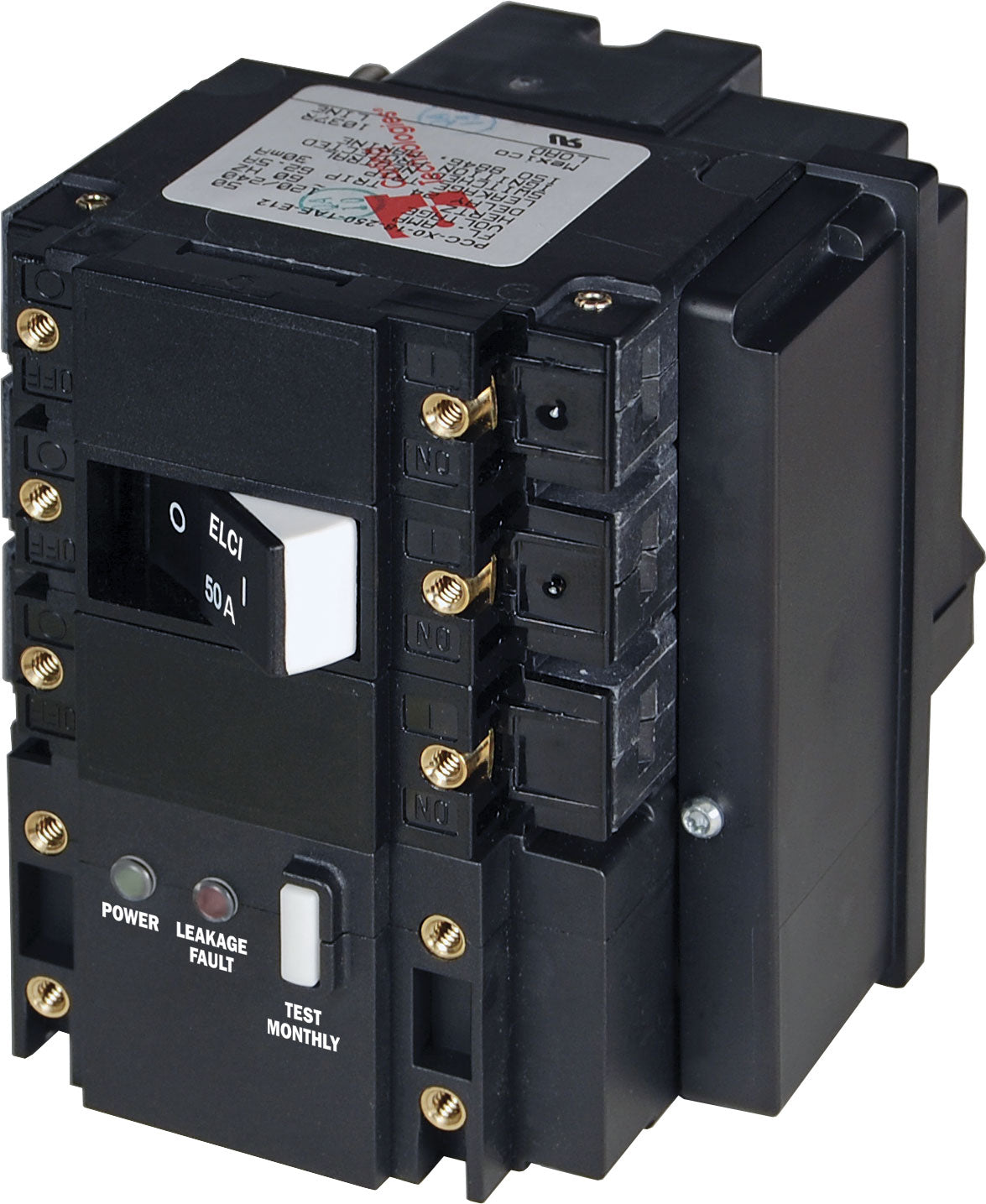

Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A
Model: 3104-BSS- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
| Amperage | 50A |
| Actuator Style | Flat Rocker |
| Poles | 3 |
| Ignition Protected | Yes |
| Maximum Voltage | 120V AC per pole 240V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35° C |
| Maximum Operating Temperature | 66° C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.85lb (0.39 kg) |
