Blue Sea Systems
Blue Sea 5a Push Button Quick Connect Circuit Breaker
Blue Sea 5a Push Button Quick Connect Circuit Breaker
Regular price
$6.96
Regular price
Sale price
$6.96
Unit price
/
per

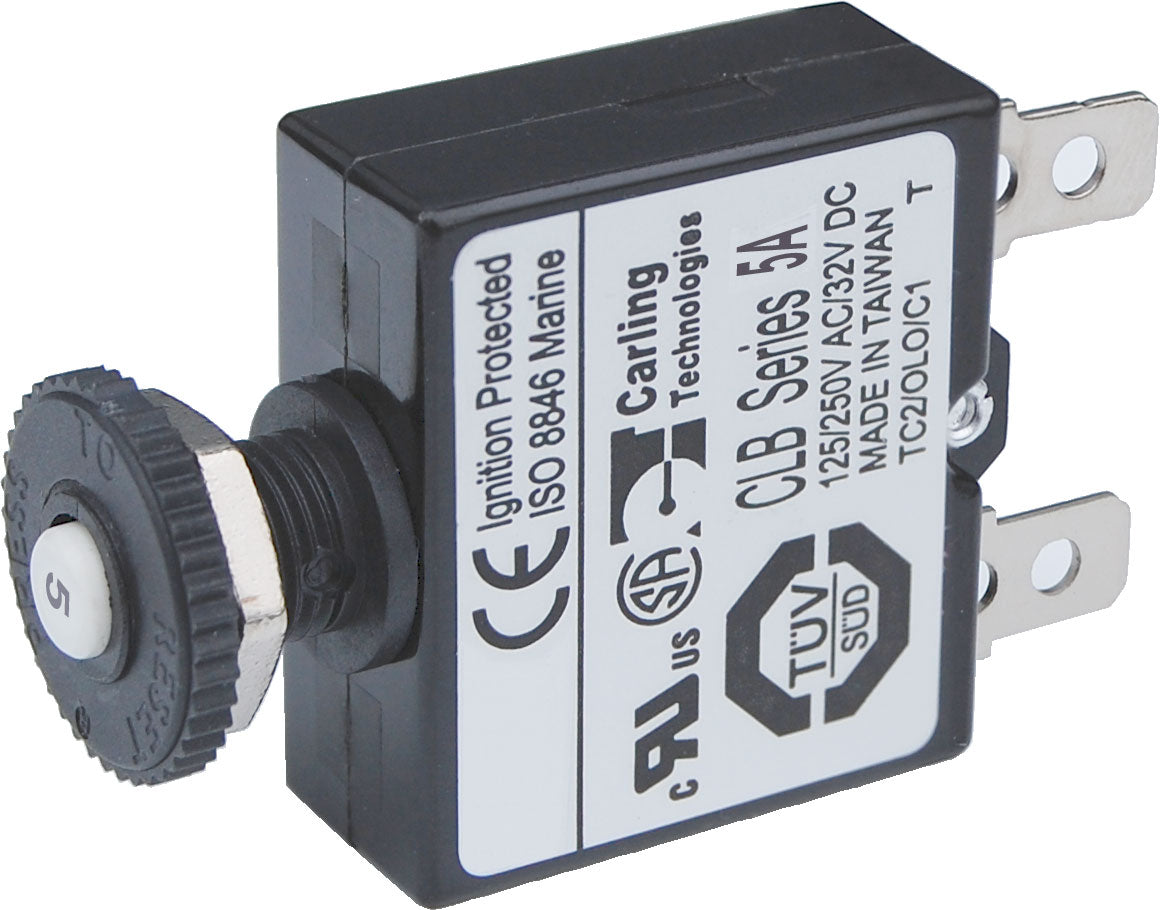

Blue Sea Push Button Reset Only Quick Connect Circuit Breaker - 5 Amps
Model: 7052-BSS- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
Amperage | 5A |
Maximum Voltage | 32vDC |
Mounting | Panel Mount 3/8-27 UNS |
Circuit Breaker Type | Thermal trip, manual push-button reset only |
Terminal Type | 1/4 Male Quick Connect |
Interrupt Capacity | 3000A @ 14.7V 2500A @ 28V |
Minimum Operating Temperature | -10° C |
Maximum Operating Temperature | 60° C |
