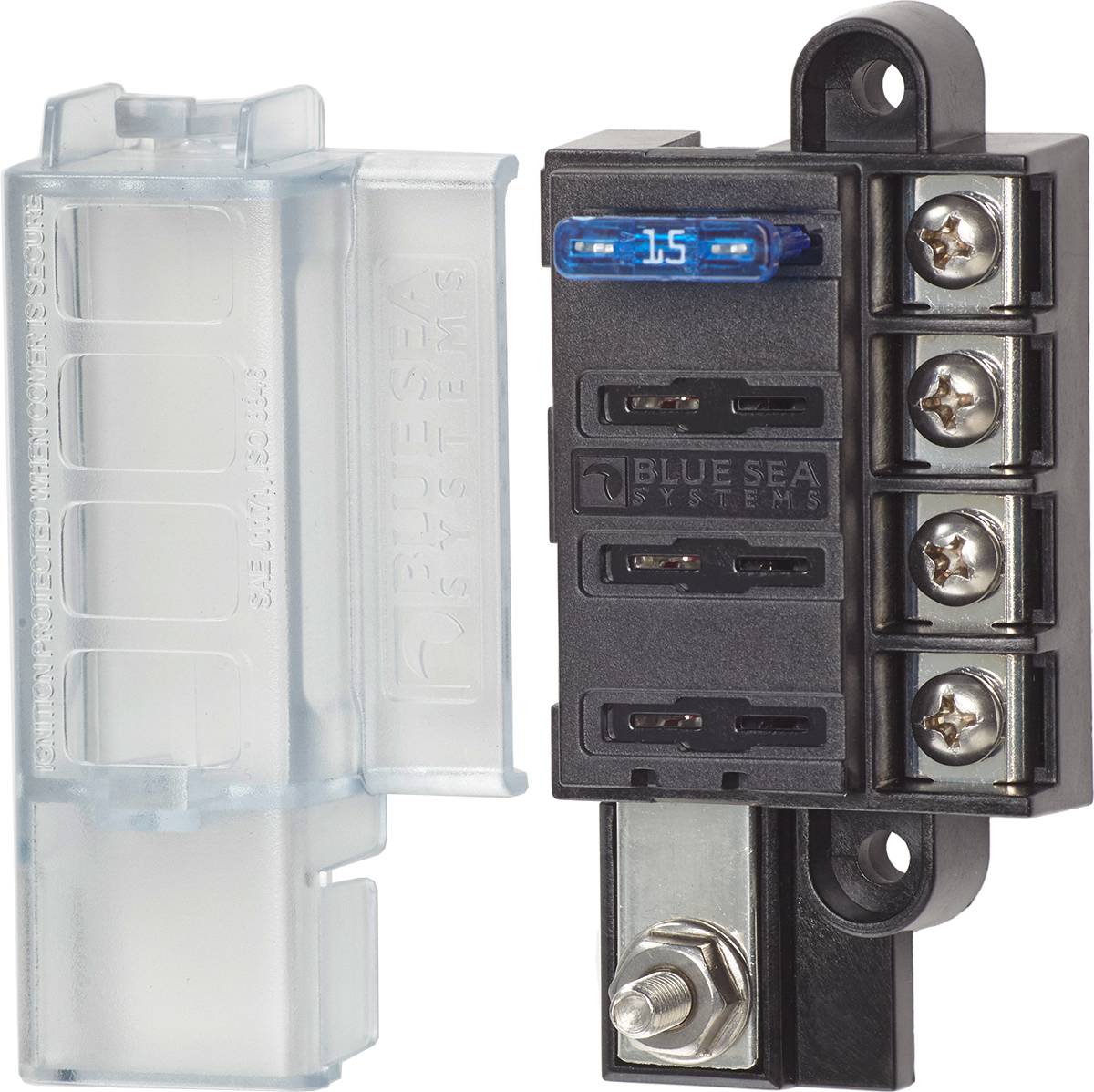

Blue Sea 5045 4-circuit Fuse Block St Ato/atc With Cover
Blue Sea 5045 4-circuit Fuse Block St Ato/atc With Cover
Regular price
$38.02
Regular price
Sale price
$38.02
Unit price
/
per
Blue Sea Systems ST Blade Compact Fuse Blocks - 4 Circuits
Model: 5045-BSS- Ignition protected when cover is secure —meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 4 write-on circuit labels
- Fuses sold separately
Circuits | 4 |
Maximum Amperage | 100A per block 30A per circuit |
Maximum Voltage | 32V DC |
Mounting | #8 Screw (M4) |
Terminal Stud Torque | 24 in-lb (2.71 Nm) |
Screw Terminal Torque | 18 in-lb (2.03 Nm) |
Screw Terminal Type | #8-32 Scews with captive star lock washer |
Terminal Stud Size | #10-32 |
