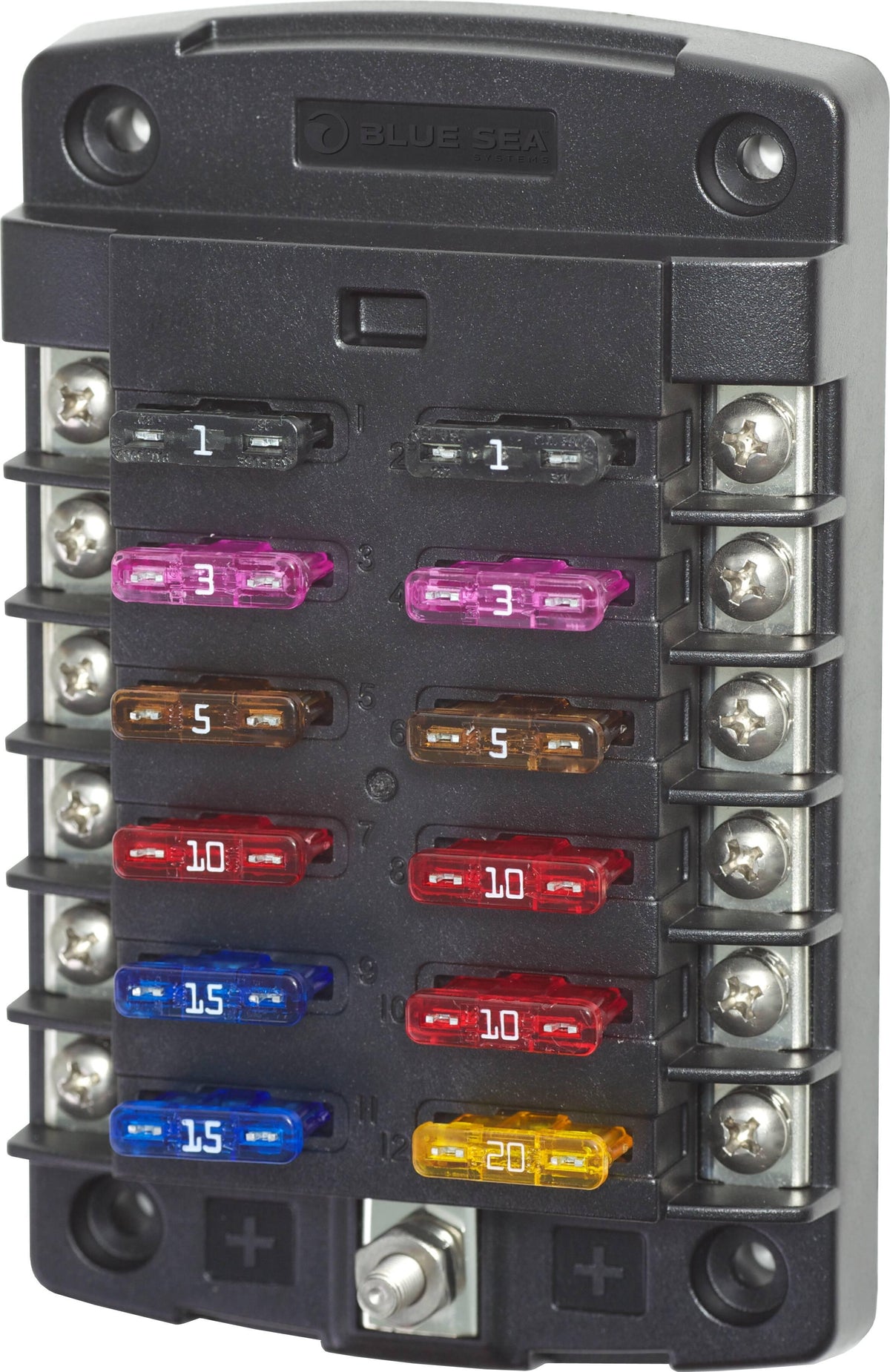

Blue Sea 5034 ST Blade Fuse Block - 12 Circuits

Blue Sea Systems ST Blade Fuse Block - 12 Circuits
Model: 5034-BSS

• Positive distribution bus with #10-32 stud
• Can be used for 24-hour circuits
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO® and ATC® fast acting blade fuses
• Fuses sold separately

Consolidates branch circuits and in-line fuses.

Specifications

Circuits	12
Maximum Amperage	100A per block, 30A per circuit
Maximum Voltage	32V DC
Mounting	#8 Screw (M4)
Positive Bus	#10-32 Stud
Recommended Torque	24 in-lb (2.71 Nm)
Screw Terminal Torque	18 in-lb (2.03 Nm)
Screw Terminal Type	#8-32 Screws with captive star lock washer
Weight	0.60 lb (0.27 kg)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea

UPC: 632085050344

Model Number: 5034-BSS

Weight: 0.6
