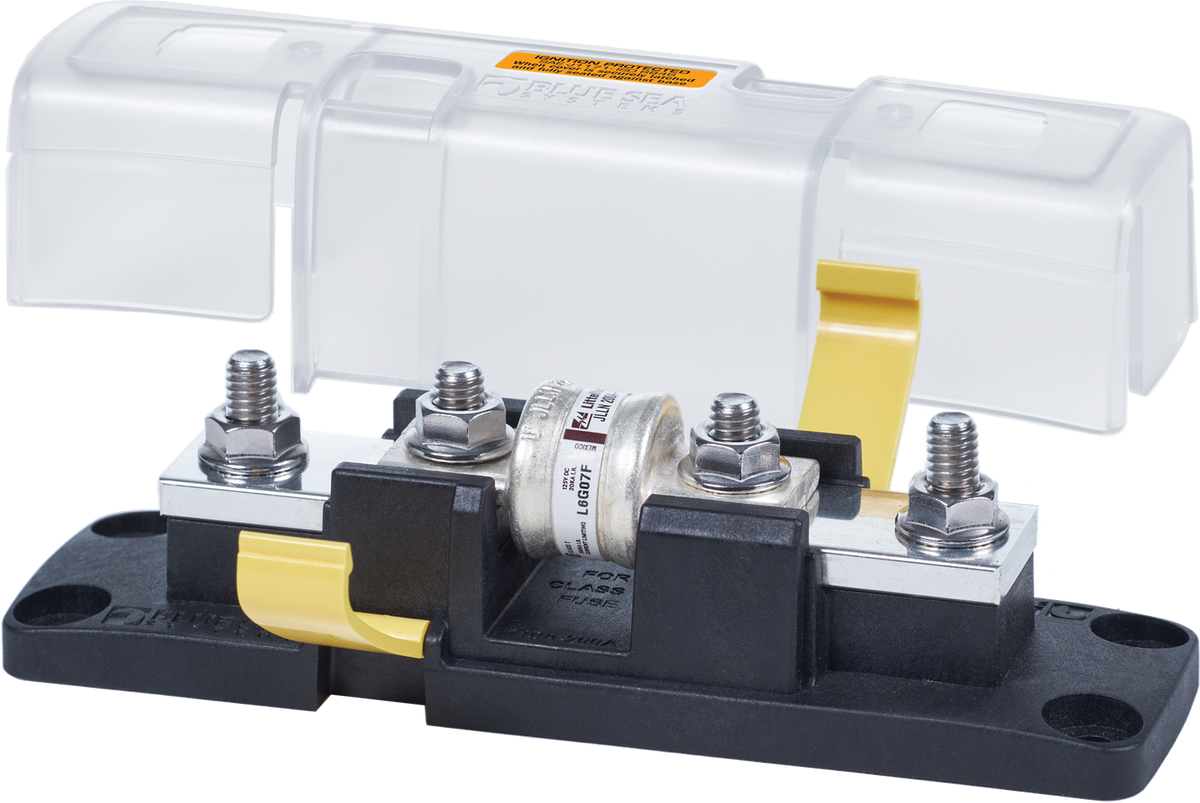

Blue Sea 5007100 Class T Fuse Block with Insulating Cover 110 to 200 Amp

Blue Sea Systems Class T Fuse Block with Insulating Cover - 110 to 200A
Model: 5007100-BSS

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Stud design ensures secure fuse mounting even with high heat
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat
• Ignition Protected

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics.

Specifications

Cable Size	Up to 4/0 AWG
Ignition Protected	Yes
Maximum Amperage	160A
Maximum Voltage	160V DC
Fuse Mounting Blocks	Tin-Plated Copper
Maximum Torque	72 in-lb (8.13 Nm)
Mounting Fastener Size	1/4 in or M6 Hardware
Terminal Stud Size	1/4 in-20 (M6)
Weight	1.10 lb (0.5 kg)
