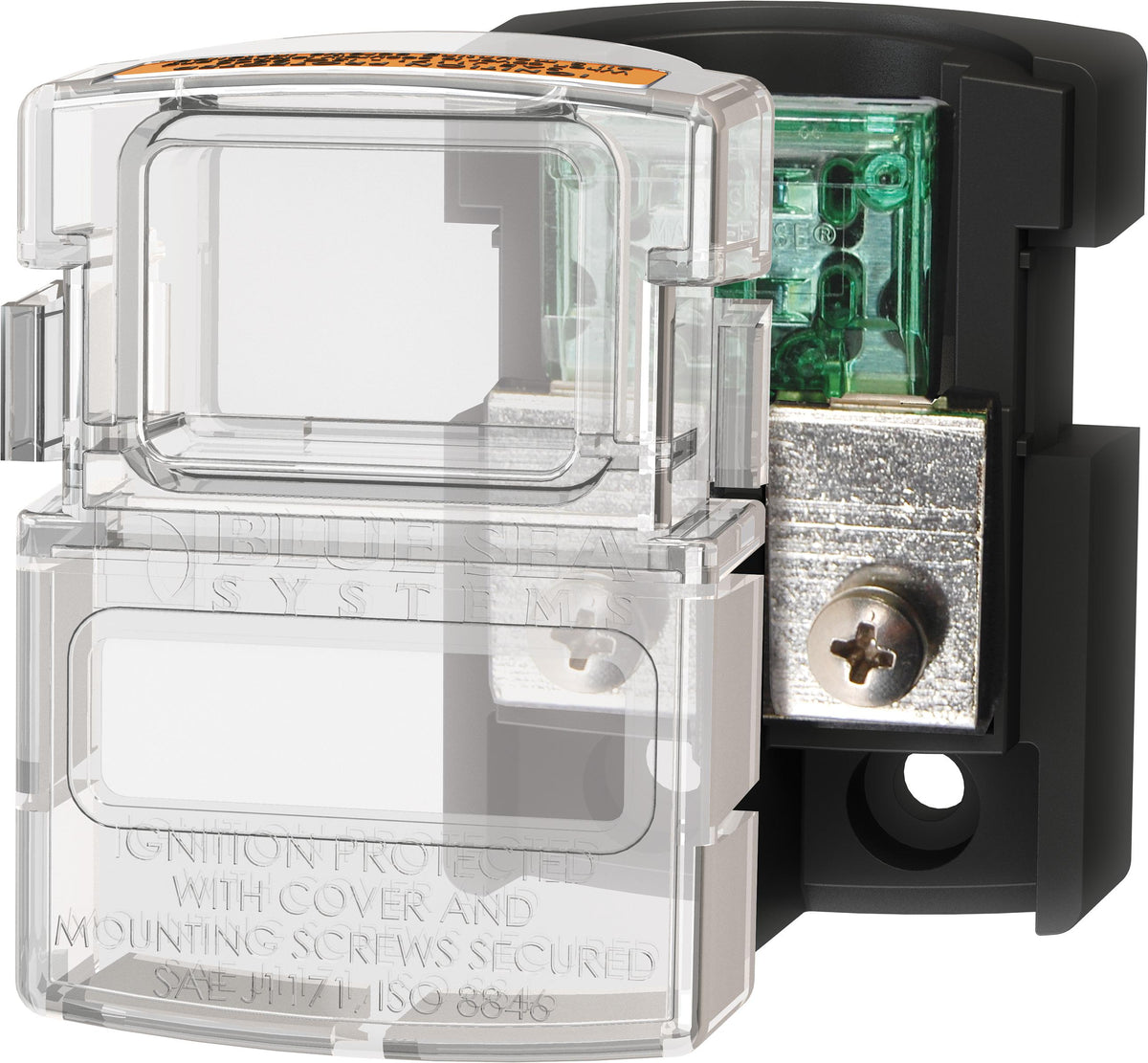

Blue Sea 5006100 MAXI Fuse Block 30 to 80 Amp Ignition Protected

Blue Sea Systems MAXI Fuse Block
Model: 5006100-BSS

• Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
• Cover breakouts allow wires from sides or bottom
• Terminal screws compress fuse blades within blocks for low resistance connections
• Ignition Protected
• Label recess accepts large format label
• Fuses sold separately

Specifications

Maximum Amperage	80A
Maximum Voltage	32V DC
Mounting	#10 Screws
Screw Terminal Torque	25 in-lb (2.82 Nm)
Wire Size	14 - 4 AWG
Weight	0.25 lb (0.11 kg)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea

UPC: 632085500610

Model Number: 5006100-BSS

Weight: 0.25
