Blue Sea Systems

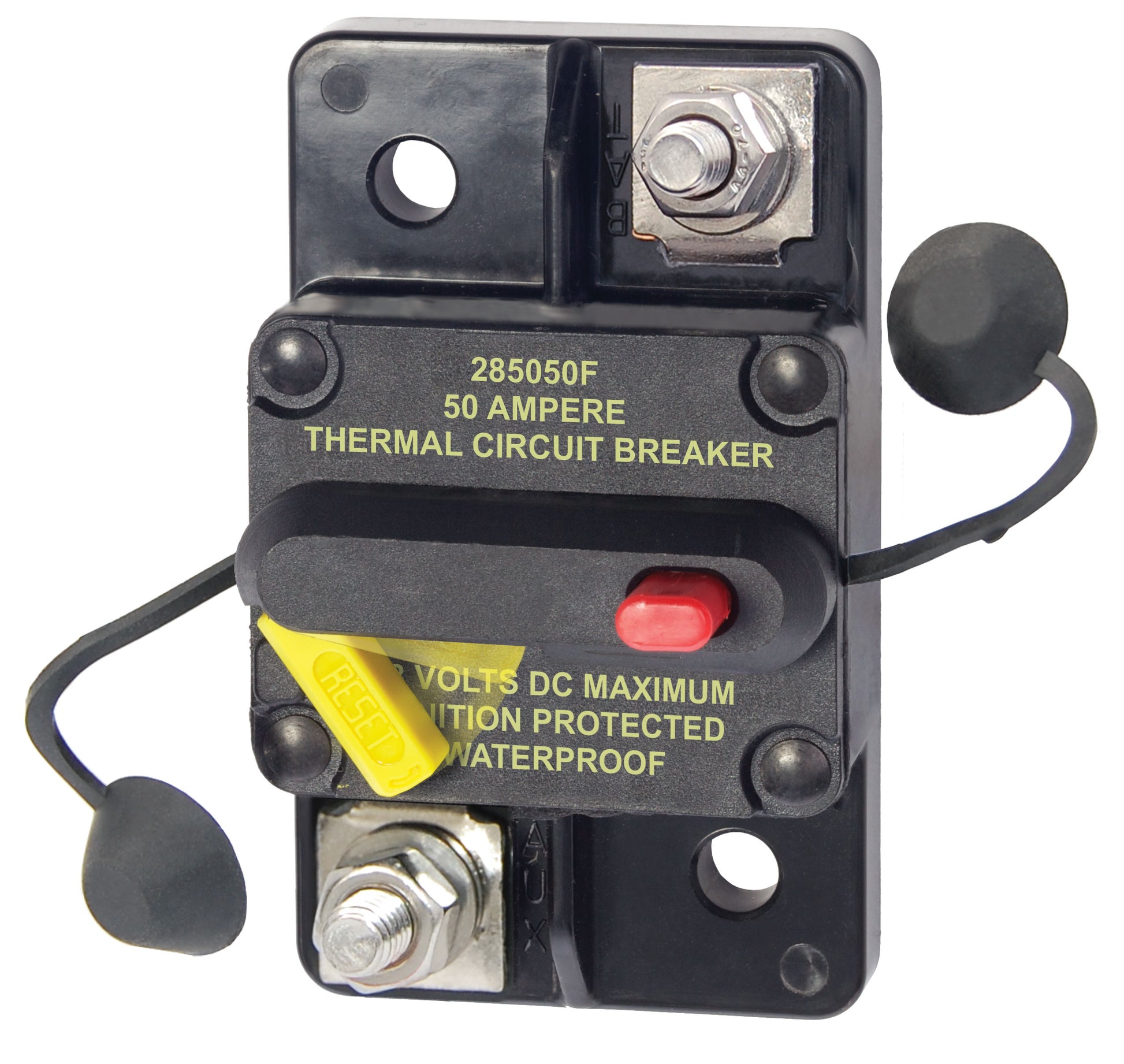

Blue Sea 285-series 50 Amp Circuit Breaker Surface Mount

Blue Sea 285-series 50 Amp Circuit Breaker Surface Mount

Regular price $65.51
Regular price Sale price $65.51
Sale Sold out

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 50A

Model: 7183-BSS
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • ""Trip Free"" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage 50A
Maximum Voltage 48V DC
Mounting Surface Mount
Circuit Breaker Type Thermally responsive Bi-metal blade
Terminal Stud Torque 50 in-lb (5.65 Nm)
Interrupt Capacity 3000A @ 48V
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Circuit Breaker Class Type III - switchable/manual reset - trip free
Terminal Stud M6 (accepts 1/4"" Ring Terminal)
