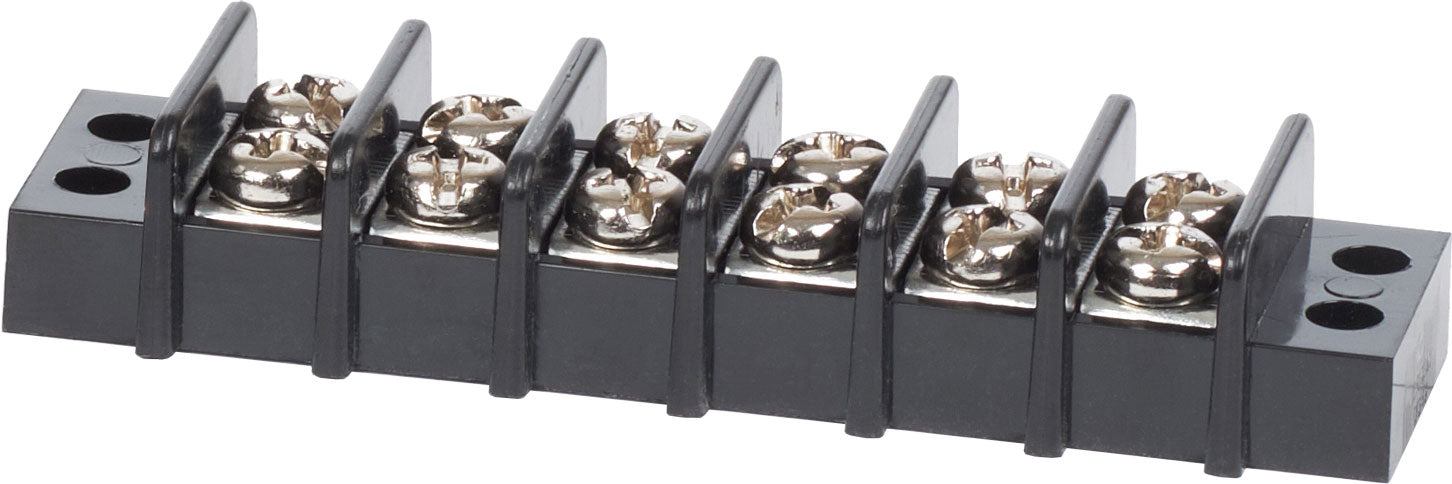

Blue Sea 20A Terminal Block 6 Circuit

Blue Sea Systems Terminal Block 20A - 6 Circuit

Model: 2406-BSS

• Closed back design completely insulates power from the mounting surface
• Each screw pair is one isolated circuit
• Jumpers allow creation of common circuits

Specifications

Circuits	6
Length	2.91in (73.91 mm)
Maximum Voltage	300V AC/DC
Continuous Rating	20A
Base Material	UL 94 V0, PC
Bus Material	Nickel-Plated Brass
Mounting Screw	#6 [M3.5]
Screw Material	Stainless Steel
Screw Terminal Torque	7 in-lb (0.79 Nm)
Terminal Screws	M3.5
Wire Terminal Size	#6 [M3]

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085024062

Model Number: 2406-BSS

Weight: 0.080000
