BEP Marine

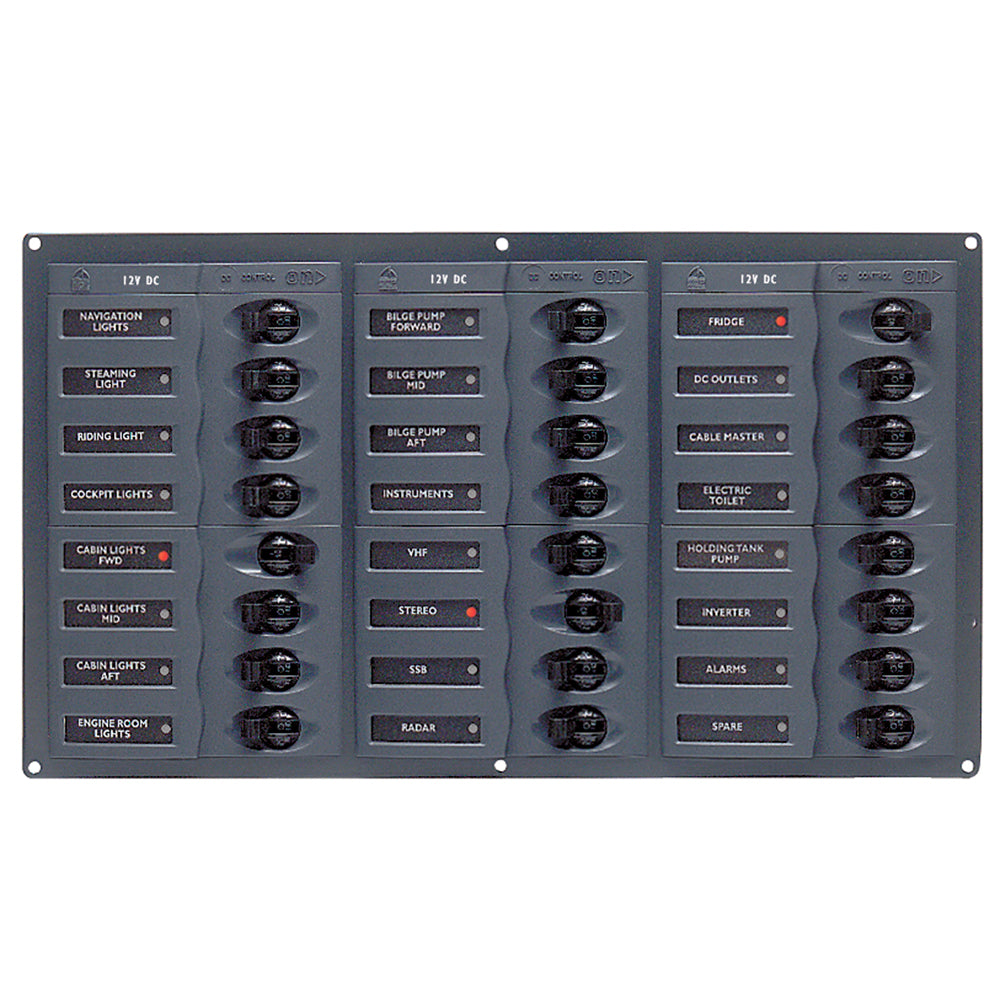

BEP DC Panel - 24-Way - No Meter
BEP DC Panel - 24-Way - No Meter
Regular price
$1,281.99
Regular price
$1,281.99
Sale price
$1,281.99
Unit price
per
Couldn't load pickup availability
DC Panel - 24-Way - No Meter
BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.
Features
Specifications
Total Positions: 24 Loads
Circuit Breakers: 5X 5A, 8X 10A, 8X 15A, 1X 20A, 1X 25A, 1X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 7.9" X 13.9" X 2.5"
Neg Bus: 12 Way
BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.
Features
- Marine Grade powder coated aluminium
- Airpax circuit breaker
- Stylish Contour Design fascia
- Green LED backlit labels
- Red LED indicates systems on
- Panels meet ABYC standards
Specifications
Total Positions: 24 Loads
Circuit Breakers: 5X 5A, 8X 10A, 8X 15A, 1X 20A, 1X 25A, 1X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 7.9" X 13.9" X 2.5"
Neg Bus: 12 Way
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Owners Manual | https://productimageserver.com/literature/ownersManual/58815OM.pdf |
Brand: BEP Marine
UPC: 870216002200
Harmonization Code: 8537109070
Model Number: 905NM
Weight: 6.6
Length: 16
Height: 5
Width: 11
