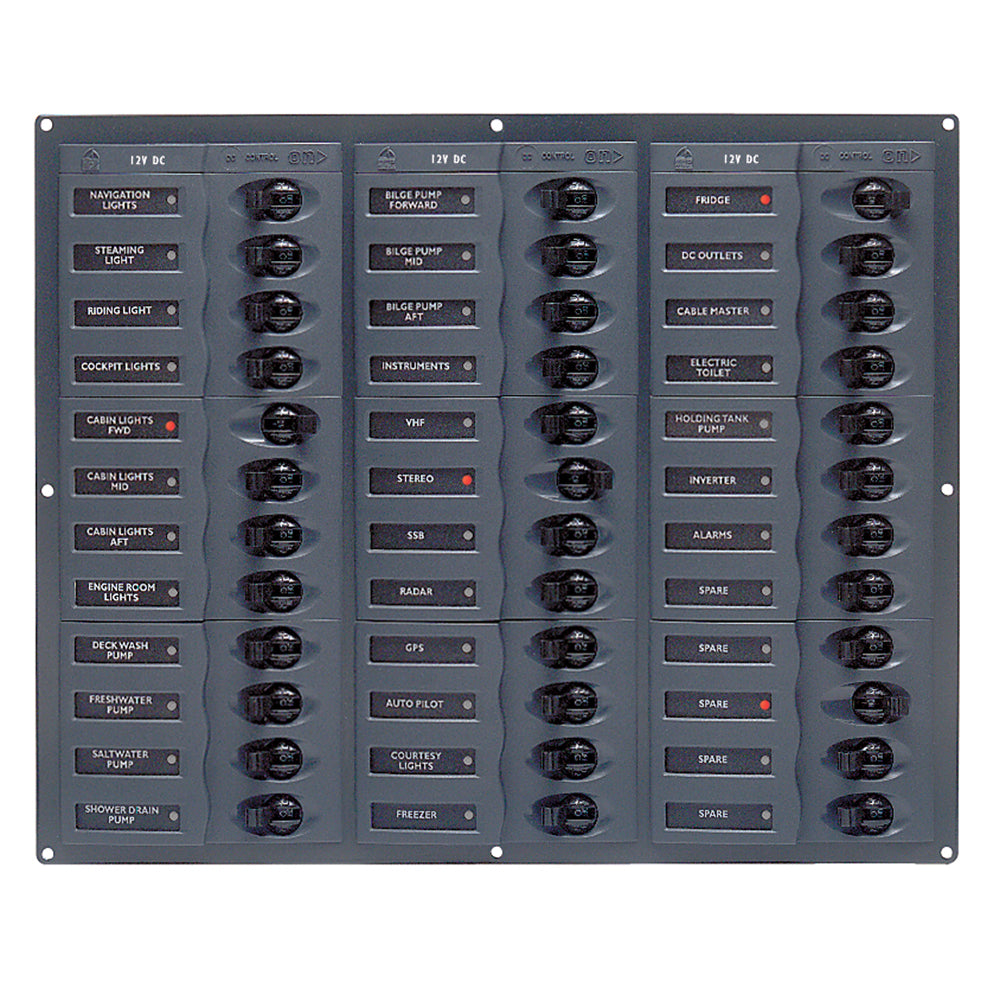

BEP Circuit Breaker Panel - 36-Way

Circuit Breaker Panel - 36-Way

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features:

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications:

• Total Positions: 36 Loads

• Circuit Breakers: 8X 5A, 12X 10A, 12X 15A, 2X 20A, 1X 25A, 1X 30A

• Nominal Voltage: 12V

• Maximum Amperage: 160A per bus

• Dimensions: 11.25" X 13.9" X 2.5"

• Neg Bus: 24 Way

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brand: BEP Marine

UPC: 843687001379

Harmonization Code: 8537109070

Model Number: NC36NM

Length:

Height:

Width:
