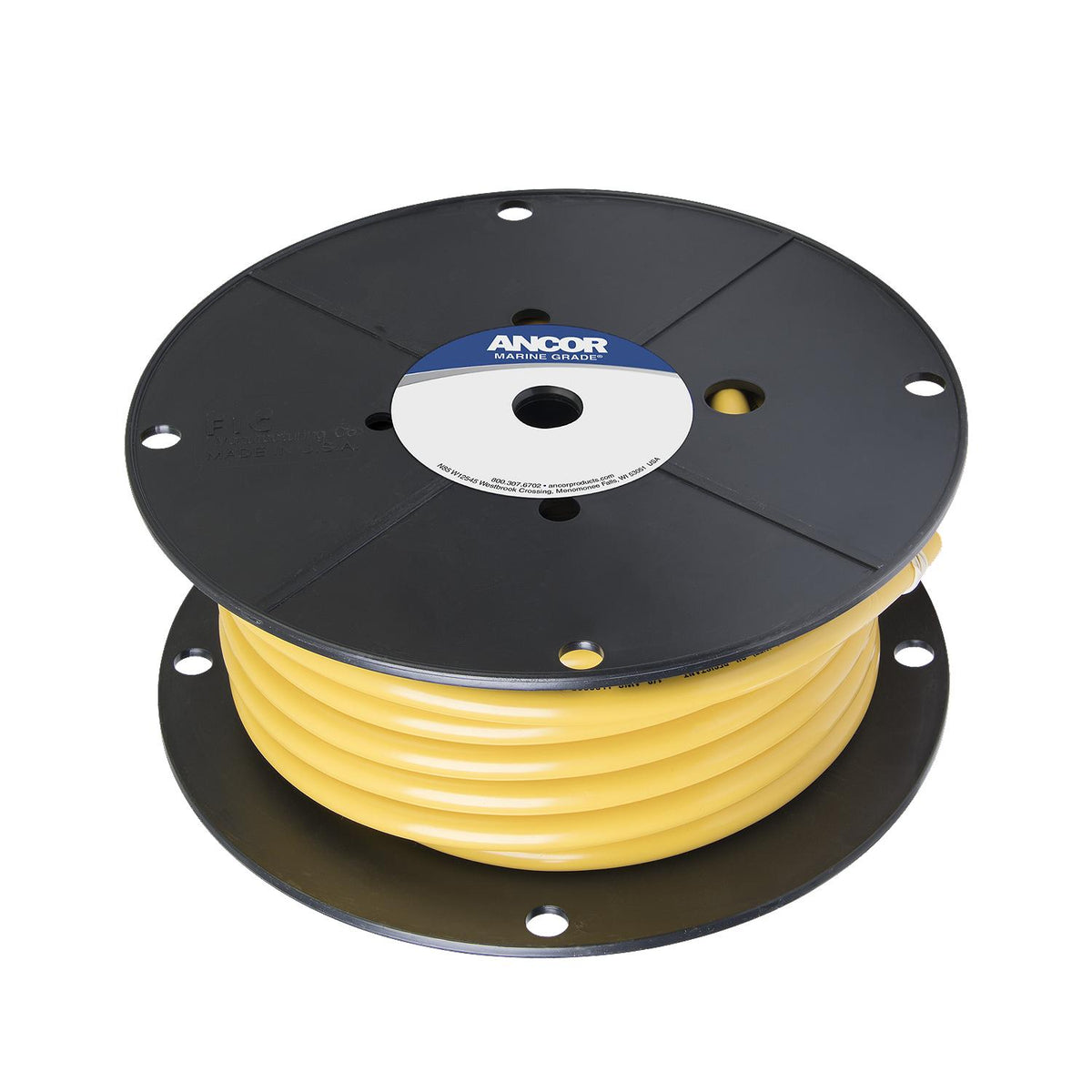

Ancor 3/0 Yellow 100ft Spool Tinned Copper

Ancor Tinned Copper Battery Cable, 3/0 AWG (81mm2), Yellow - 100ft
Model: 118910

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Specifications

Wire Gauge	3/0 AWG
Color	Yellow
Length	100 ft
Conductor	Tinned copper, Type 3 ultra flexible stranding
Stranding	1665 strands of 30 AWG
Nominal O.D.	11/16" (17.5 mm)
Wire Diameter	13.0 mm
Minimum Bend Radius	5-23/64" (13.7 cm)
Circular Mil Area	167,800
Cross-Sectional Area	85.01 mm²
Resistance	0.06 ohms per 1000 ft
Weight per 1000 ft	675 lbs (306 kg)
Voltage Rating	600V
Temperature Rating	221°F / 105°C dry, 167°F / 75°C wet
Cold Flexibility	Stays flexible to -40°F / -40°C
Standards	Exceeds UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Ancor

UPC: 091887968118

Model Number: 118910

Weight: 69
