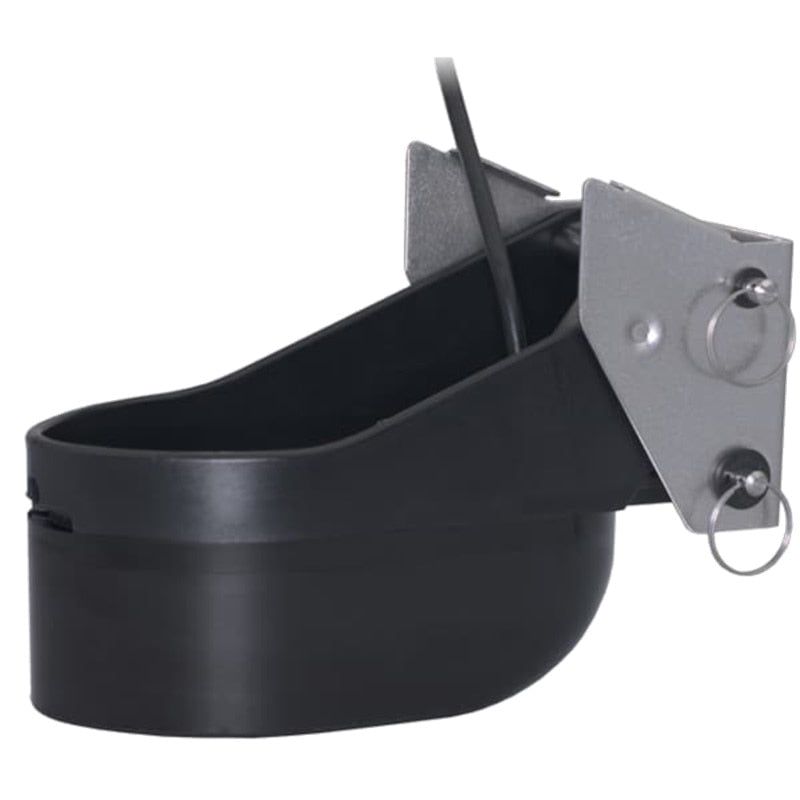

Airmar TM275C Medium Ultra-wide, High Wide Chirp Combo, 1kW, Mix and Match? Transducer, Depth/Temp.

Airmar TM275C Medium Ultra-wide, High Wide Chirp Combo, 1kW, Mix and Match™ Transducer, Depth/Temp.

• Depth & fast-response water-temperature sensor
• 1 kW of power for great deep-water performance
• Medium frequency: 60 to 100 kHz, 57° to 73° beamwidth port/starboard, 16° average fore/aft
• High frequency: 150 to 250 kHz, 25° constant beamwidth Maximum depth of 152 m (500')
• 140 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 75 and 200 kHz plus everything else in the bandwidth
• Transom angle 3° - 21°
• For boats up to 10 m (33')

The TM275MWHW combines medium and high frequencies into a single transom-mount model, advancing transducer design by delivering wider bottom coverage than any other 1 kW transducer available. It combines medium frequencies (60-100 kHz), which deliver ultra-wide beamwidths for maximum coverage under the boat down to 396 m (1300’)... the ultimate scouting tool for anglers targeting species down deep. Together with the very popular, high-frequency bandwidth (150 to 250 kHz), with wide 25° beamwidths, for excellent performance with more coverage and great fish-target separation in the upper water column. Its wide beam offers twice the coverage of standard high frequencies, for detecting fish in the upper-water column, producing clear fish arches on the display. The TM275MWHW is an exceptional choice for both inshore, pelagic fishing, and deep-water species where critical resolution and maximum coverage are required. The TM275MWHW sets the standard for efficiently scouting massive areas for target species. The TM275MWHW is suitable for boats up to 10m (33’).

• TM-275C MWHW-MM
• Transom Mount Bracket and Hardware
• 3 - 3deg Shims


WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Airmar

Model Number: TM275C-MWHW-MM
