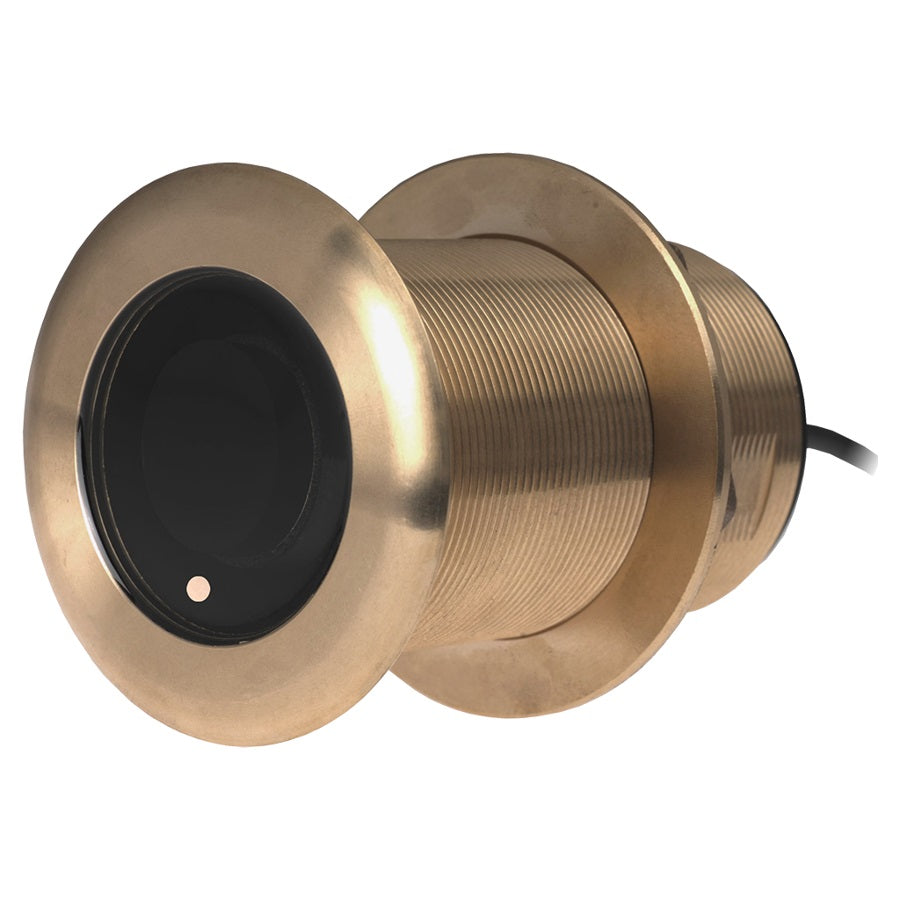

Airmar B60 50/200 Khz 12DEG Tilted Element Garmin 8 Pin

Airmar B60 50/200kHz 600 Watt 12 Degree Tilted Element Depth and Temperature with a Garmin 8-Pin

Model: B60-12-8G

• Depth and fast-response water temperature sensing
• 600 W of power
• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16") outside the hull
• No effect on your boat’s running performance
• Bronze housing for fiberglass or wood hull

Specifications

Acoustic Window	Urethane
Cable-Length	10 m (33')
Connector	Garmin 8-Pin
Conventional Beam	45°/12°
Deadrise Range	8° to 15°
Frequency Band	50/200 kHz
Material	Bronze
Max Depth	Low frequency- 366 m (1200'), High frequency- 206 m (700')
Tilt Angle	12°
Weight	1.4 kg (3 lb.)
Power Rating	600 W
Functions	Depth, Temperature
Hole Size	60 mm (2-3/8")
Usable Shaft Length	68.5 mm (2.70")

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Airmar

Model Number: B60-12-8G

Weight: 4.300000
