Airmar

Airmar B275c-lhw-mm Transducer Low High Wide Beam

Airmar B275c-lhw-mm Transducer Low High Wide Beam

Regular price $2,497.50
Regular price Sale price $2,497.50
Sale Sold out

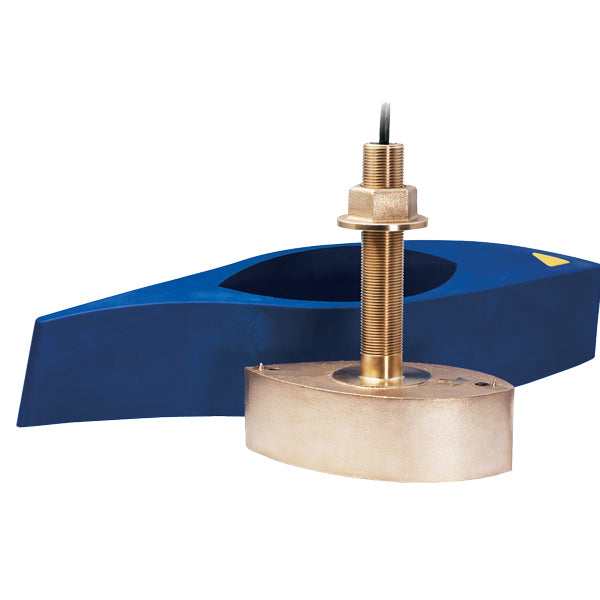

Airmar B275C-LHW Wide Beam CHIRP Bronze Thru-Hull Transducer

Model: B275C-LHW-MM
  • Depth & fast-response water-temperature sensor
  • 123 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Specifications
Low Frequency CHIRPS from 42 kHz to 65 kHz
?25° to 16° beamwidth
High Frequency CHIRPS from 150 kHz to 250 kHz
?25° constant beamwidth
Boat size 8 m (25’) and above
Hull type Fiberglass or wood
Hull deadrise Up to 20° with fairing block
Acoustic window Urethane

What's in the Box:
  • B275CLHW
  • Fairing block and hardware
