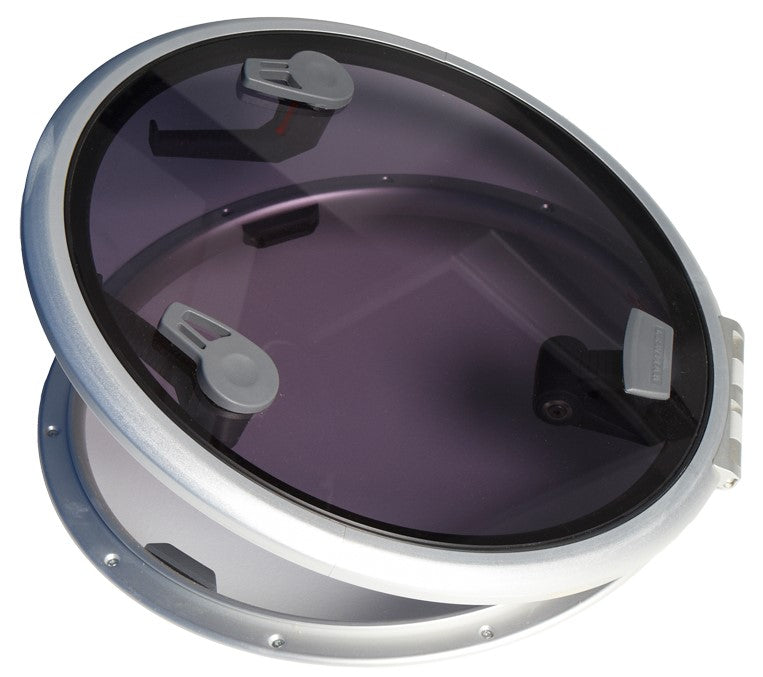

Lewmar Size 18 Low Profile Hatch Flange Base

Support System	Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
Self Supporting	9/16	Smoke Grey	4.9	5/16

Dimensions

Diameter (in)	Height Z (in)	Hinge Length HX (in)	Hinge Width HY (in)	Cut-Out Diameter (in)
19 15/16	1	19 7/16	5 9/16	16 9/16

Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4"). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Lewmar

UPC: 743683107061

Model Number: 39918030

Weight: 10.000000
