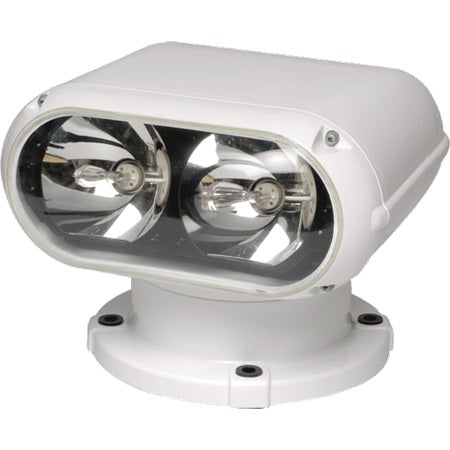

ACR RCL300A HID Searchlight

ACR RCL-300A 1 Million* CD Remote-Controlled HID Searchlight (12/24V)

Model: 1933

• Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
• Includes fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included
• Rugged triple-primed and sealed, marine grade aluminum housing
• XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
• Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
• Wiring harness included
• * Twin 35W, Metal Halide HID lamps provide over 500k CD each and 1 million effective CD when combined.

Twin, 35-watt, Metal Halide HID lamps creates a narrow-beam searchlight that’s perfect for large sport yachts and mega-yachts, as well as large sport fish and commercial vessels. The RCL-300A Searchlight is made to improve safety at sea during night operation. It’s also simple to use with a commercial-grade joystick that has an IP 69K rating and illumination.

Specifications

Dimensions	12 x 13 x 9.3" (31 x 33 x 23.5 cm)
Material	Marine grade cast aluminum,tempered glass
Input Voltage	12V-24VDC
Amp Draw	Startup 25A @12V, Running 8A @ 12V
Operation	Remote controlled Point Pad™
Beam Angle	6°
Elevation Angle	15° up, 30° down
Rotation	360° continuous
Rotation Speed	Fast 30° per second, Slow 10° per second
Elevation Speed	3° per second
Lamp	Twin 35W metal halide lamps 1,000 hours operating life
Footprint Diameter	9" (23cm)

WARNING: This product can expose you to chemicals including Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Brand: ACR Electronics

UPC: 791659019337

Model Number: 1933

Weight: 40.000000
