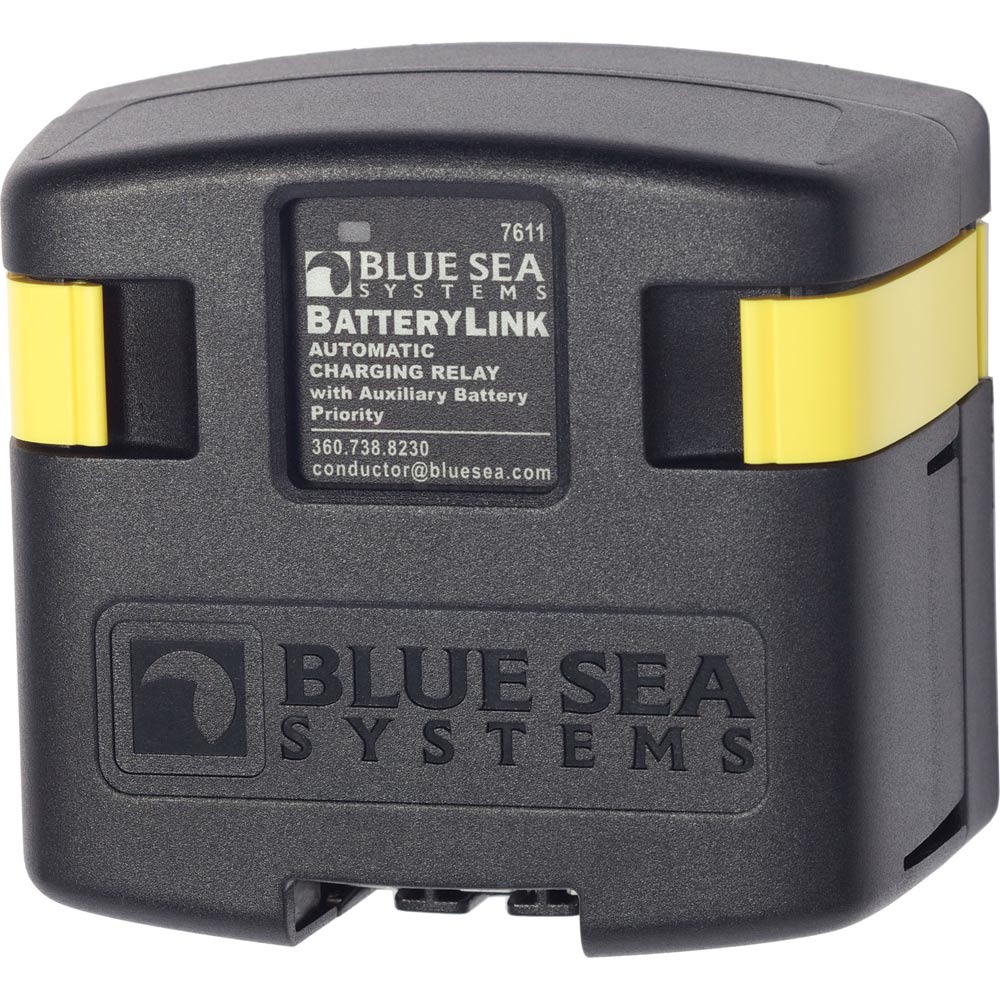

Blue Sea 7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging

• 120 Amp continuous rating

• 12/24V DC auto ranging voltage input

• Senses charging on two battery banks

• Side and bottom knockouts for cable connections

• Clip-on cover insulates terminal connections

• 7/8" (22 mm) stud length to accept multiple cable terminals

• Integrated LED indicates ACR status

• 1/4" x .032" male quick connect terminals for ground and optional features

• Intermittent Rating: 5 min.: 210 Amps

• Continuous Rating: 120 Amps

• Nominal Voltage: 12/24 Volts DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085076115

Harmonization Code: 8536.90.80.85

Model Number: 7611

Weight: 1.25

Length: 9

Height: 4

Width: 7
