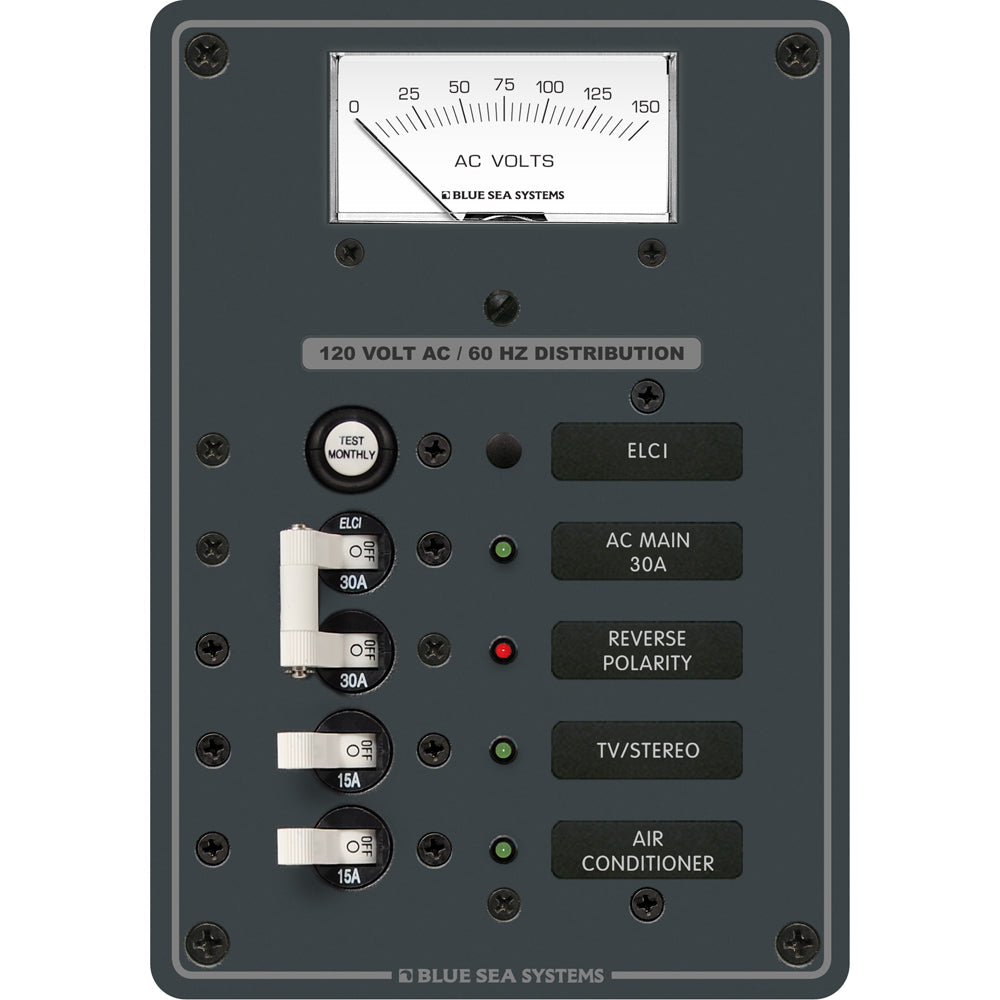

Blue Sea 8102 ELCI GFCI Panel AC 2 Position

ELCI Main 30A Double Pole + 2 Positions with Voltmeter

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• Red " Reverse Polarity" LED

• All circuit label positions are backlit

• "ON" indicating LEDs

Specifications
Positions 2
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25" (133.35mm)
Width 7.50" (190.5mm)
Depth 3.50" (88.9mm)
Weight 2.25lb (1.02kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guid	https://productimageserver.com/literature/quickGuide/40607QG.pdf
Owners Manual	https://productimageserver.com/literature/ownersManual/40607OM.pdf

Brand: Blue Sea Systems

UPC: 632085081027

Harmonization Code: 8537.10.90.50

Model Number: 8102

Weight: 2.3

Length: 11

Height: 5

Width: 9
