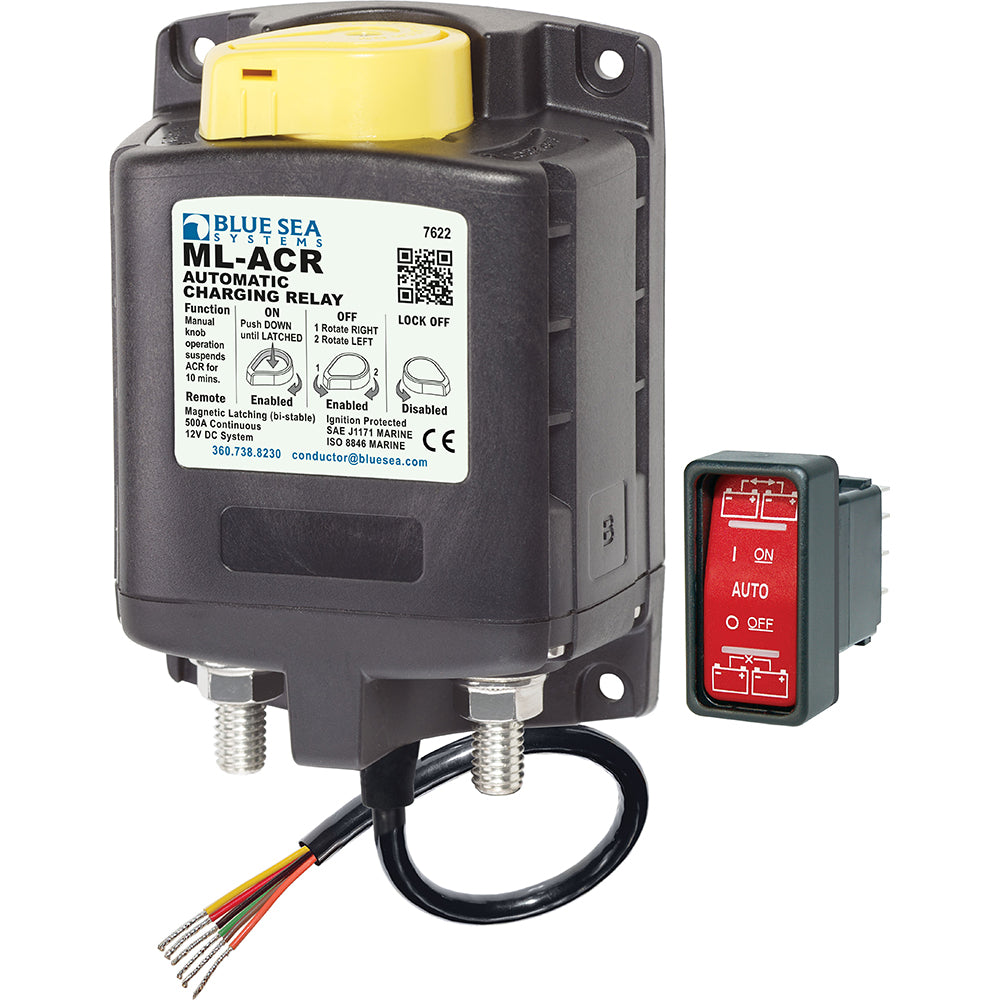

Blue Sea 7622 ML-Series Heavy Duty Automatic Charging Relay

7622

Manual Control: Yes
Coil Voltage: 12v

Features:

• Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing

• Includes ML-Series Remote Control Contura Switch PN 2146

• 500 Ampere continuous rating

• Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state

• Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics

• Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output

• Senses charging on two battery banks

• Supports high-output alternators up to 500 Amps

• LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit protection

• Silver alloy contacts provide high reliability for switching live loads

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owners Manual	https://productimageserver.com/literature/ownersManual/34967OM.pdf
Videos	https://www.youtube.com/embed/s_oKQ_N8_EY

Brand: Blue Sea Systems

UPC: 632085076221

Harmonization Code: 8536.90.80.85

Model Number: 7622

Weight: 2.05

Length: 11

Height: 3

Width: 7
