Lowrance
Lowrance Yamaha Engine Interface Cable
Lowrance Yamaha Engine Interface Cable
Regular price
$123.00
Regular price
$123.00
Sale price
$123.00
Unit price
per
Couldn't load pickup availability
Yamaha Engine Interface Cable

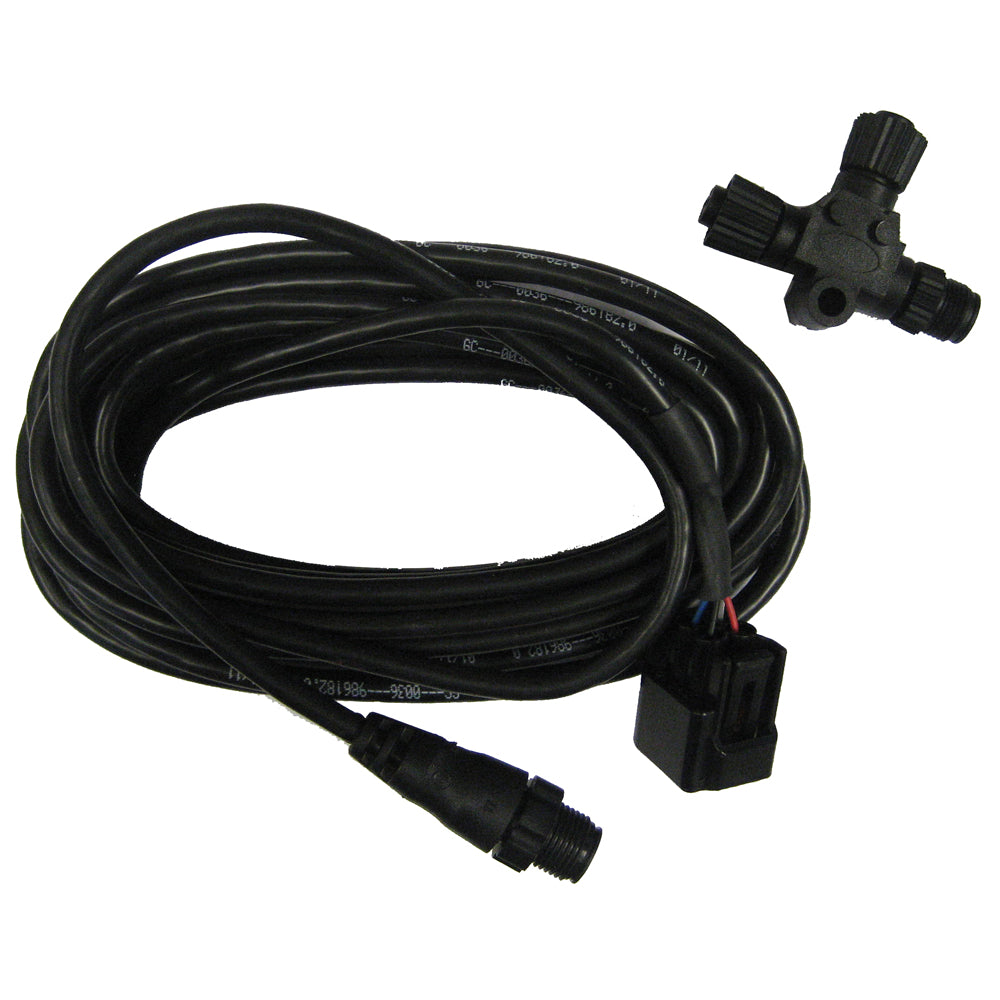

Yamaha engine interface cable 4.5 m (15 ft) and T-connector
Connects to Yamaha engines without Yamaha CommandLink Plus system.
Outputs:
Yamaha 4-Stroke 50-250 | 2-Stroke HDPI 150-350
RPM
Alternator
Voltage
Engine Hours
Engine Temperature
Fuel Pressure
Fuel Rate
Oil Pressure
Trim*
Water Pressure
*Digital trim must be connected by a Yamaha dealer.
*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.
Works with: NMEA 2000 Compliant Units
Yamaha engine interface cable 4.5 m (15 ft) and T-connector
Connects to Yamaha engines without Yamaha CommandLink Plus system.
- 2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.
- 2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.
Outputs:
Yamaha 4-Stroke 50-250 | 2-Stroke HDPI 150-350
RPM
Alternator
Voltage
Engine Hours
Engine Temperature
Fuel Pressure
Fuel Rate
Oil Pressure
Trim*
Water Pressure
*Digital trim must be connected by a Yamaha dealer.
*Requires NMEA 2000 network. Kit includes T-connector to connect to a new or existing NMEA 2000 network. Add NMEA 2000 starter kit, part number 000-0124-69, if a network is not already installed.
Works with: NMEA 2000 Compliant Units
Brand: Lowrance
UPC: 042194529820
Harmonization Code: 9014.80.20.00
Model Number: 120-37
Weight: 0.45
Length: 10
Height: 2
Width: 4
