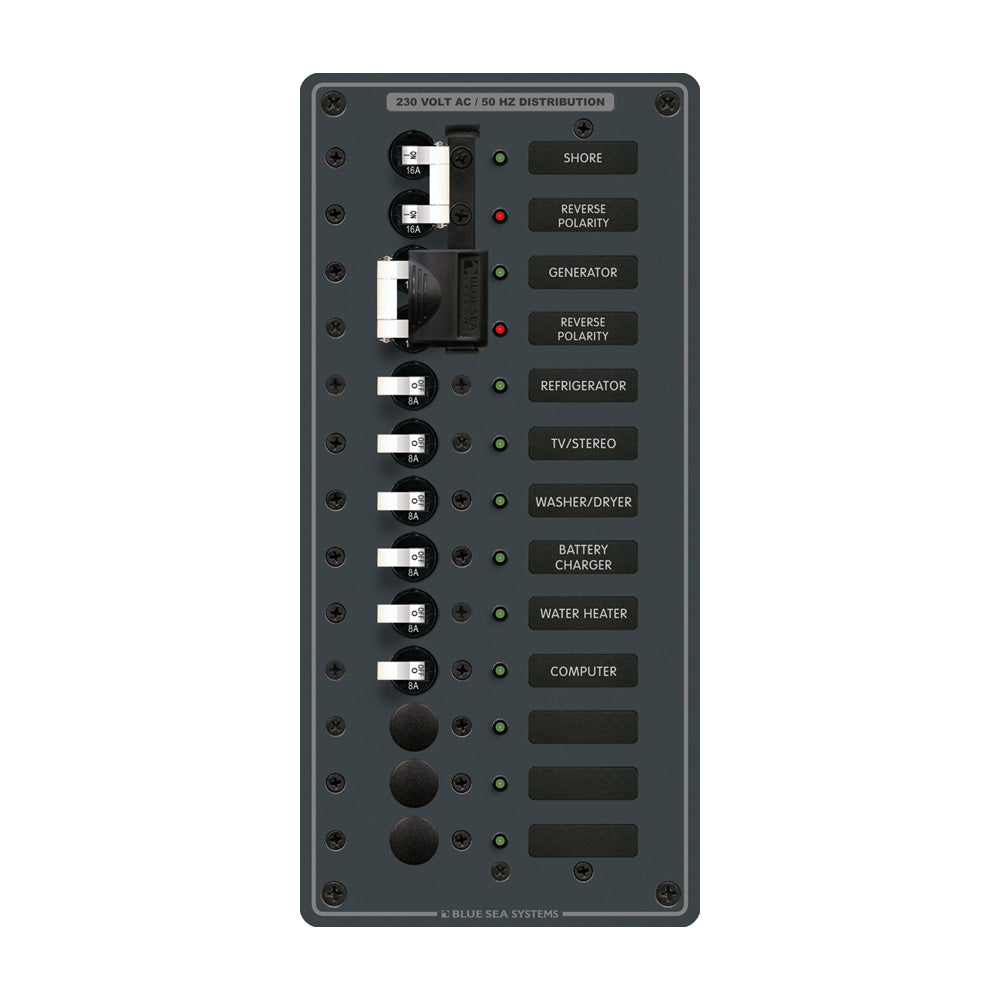

Blue Sea 3566 AC Toggle Source Selector (230V) - 2 Sources + 9 Positions

AC Toggle Source Selector (European)


PN: 8566
White Switches

(2) 16A Double Pole Circuit Breakers Installed

(6) 8A Single Pole Circuit Breakers Installed

Features:

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

• For 230V AC Systems

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guid	https://productimageserver.com/literature/quickGuide/20888QG.pdf
Owners Manual	https://productimageserver.com/literature/ownersManual/20888OM.pdf

Brand: Blue Sea Systems

UPC: 632085085667

Harmonization Code: 8537.10.90.00

Model Number: 8566

Weight: 3.6

Length: 12

Height: 4

Width: 9
