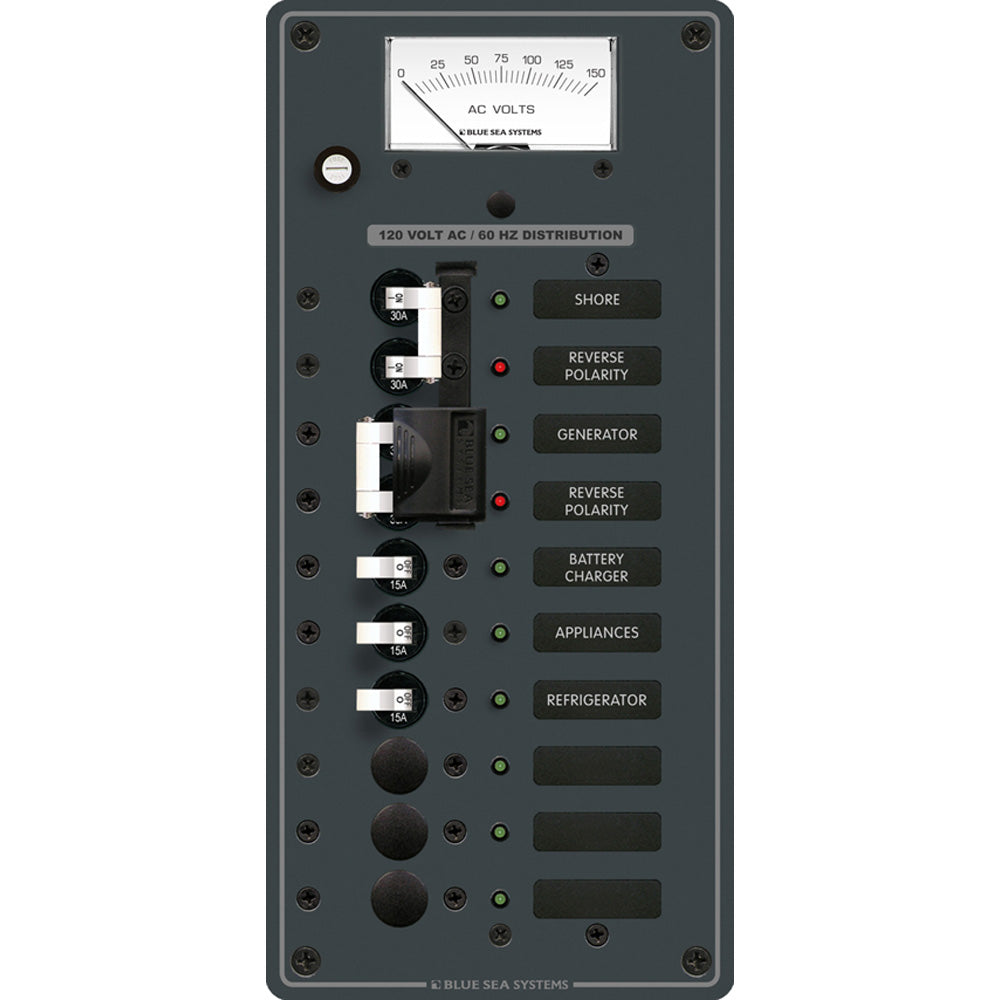

Blue Sea 8489 Breaker Panel - AC 2 Sources + 6 Positions - White

AC 2 Sources + 6 Positions


Color: White
30A Double: 1
50A Double: 0
15A Single: 5

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guid	https://productimageserver.com/literature/quickGuide/20868QG.pdf
Owners Manual	https://productimageserver.com/literature/ownersManual/20868OM.pdf

Brand: Blue Sea Systems

UPC: 632085084899

Harmonization Code: 8537.10.90.00

Model Number: 8489

Weight: 3.2

Length: 12

Height: 5

Width: 10
