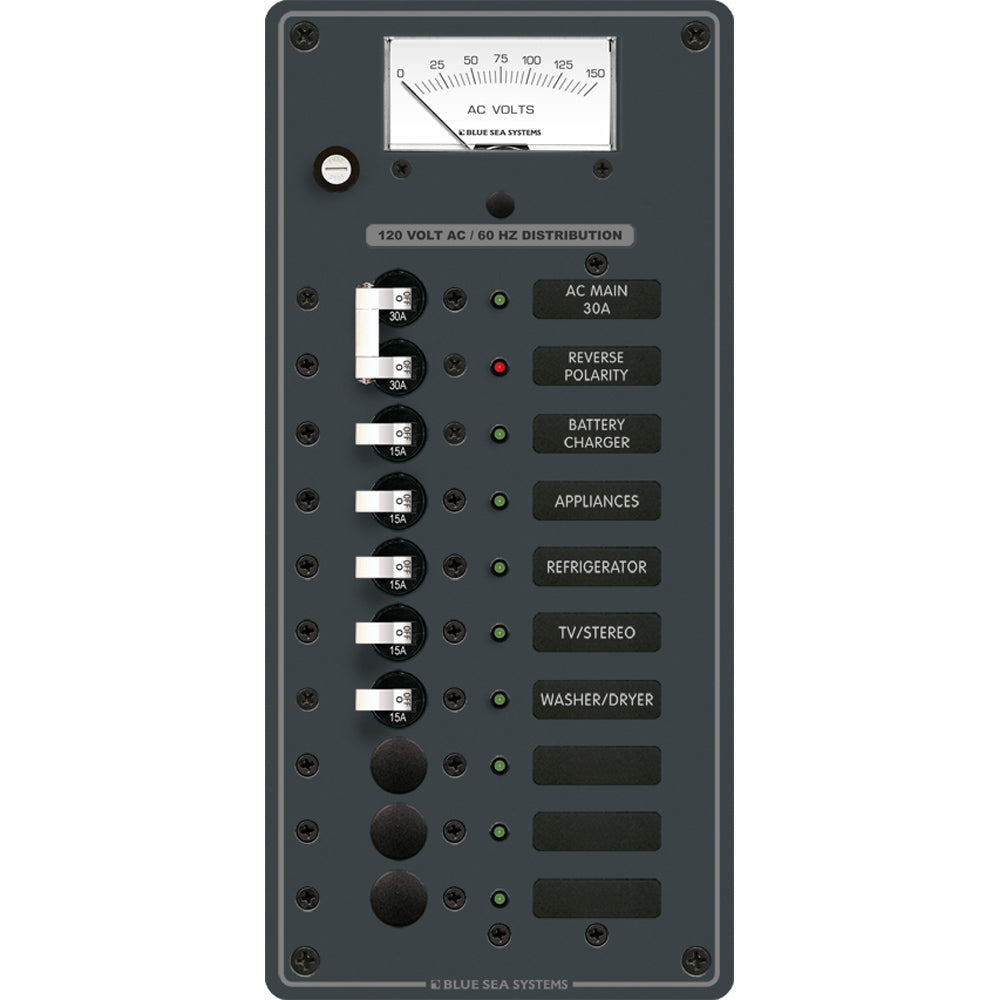

Blue Sea 8488 Breaker Panel - AC Main + 8 Positions - White

AC Main + 8 Positions

Color: Black
30A Double: 1
15A Single: 5

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 50 Amperes

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guid	https://productimageserver.com/literature/quickGuide/20867QG.pdf
Owners Manual	https://productimageserver.com/literature/ownersManual/20867OM.pdf

Brand: Blue Sea Systems

UPC: 632085084882

Harmonization Code: 8537.10.90.00

Model Number: 8488

Weight: 3.15

Length: 12

Height: 5

Width: 9
