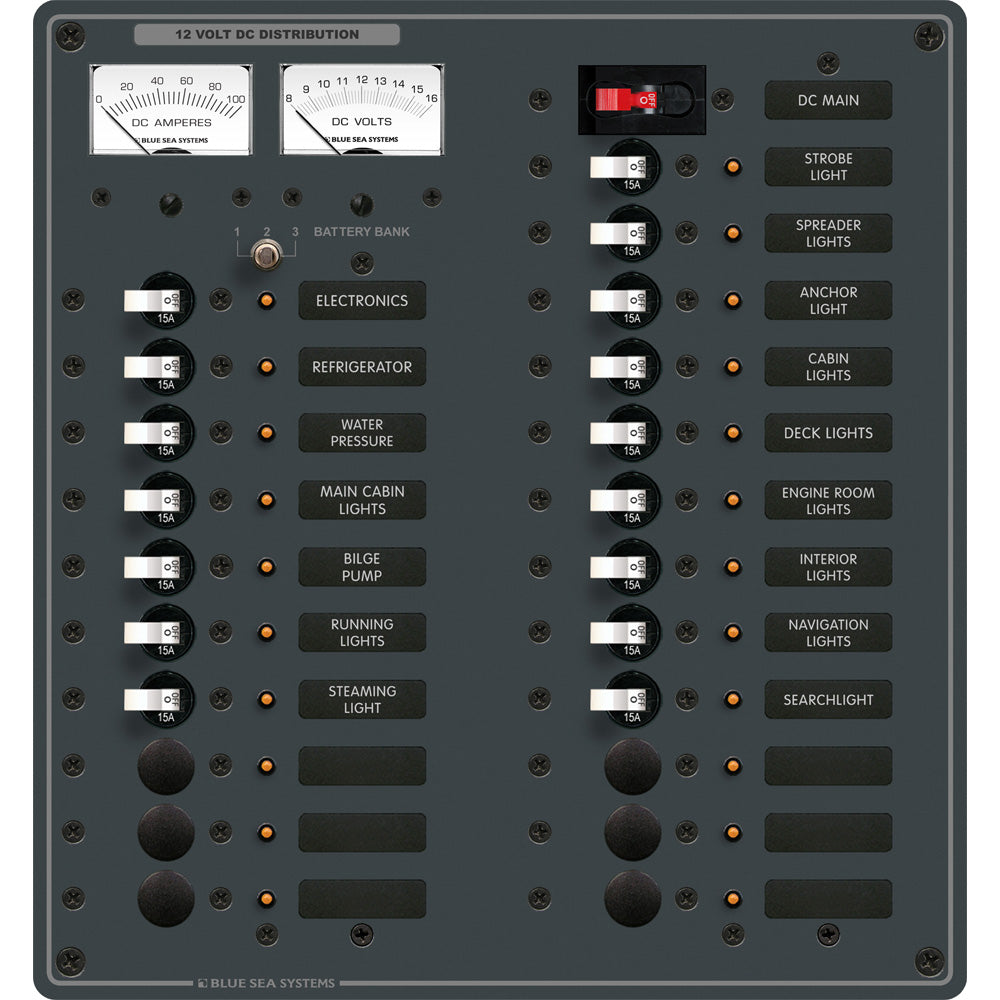

Blue Sea 8380 DC Main + 22 Position

Main + 22 Positions

(16) 15A Single Pole Circuit Breakers

(1) 100A C-Series Main Circuit Breaker

(1) 8028 DC Micro Voltmeter

(1) 8250 DC Analog Micro Ammeter

White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guid	https://productimageserver.com/literature/quickGuide/20819QG.pdf
Owners Manual	https://productimageserver.com/literature/ownersManual/20819OM.pdf

Brand: Blue Sea Systems

UPC: 632085083809

Harmonization Code: 8537.10.90.00

Model Number: 8380

Weight: 8.3

Length: 22

Height: 7

Width: 14
