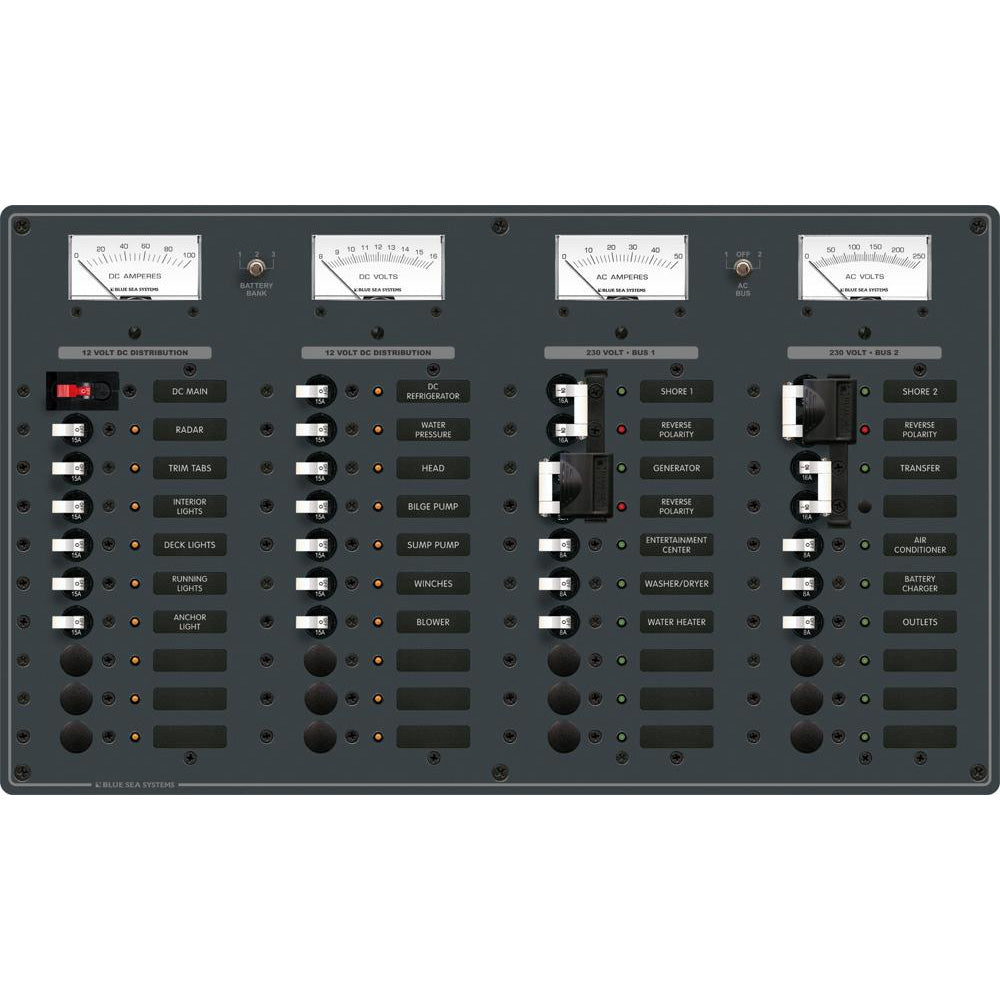

Blue Sea 8186 AC 2 Sources + 12 Positions/DC Main + 19 Positions

AC 2 Sources + 12 Positions / DC Main + 19 Positions

Switches Color: White

Installed AC Breakers

(3) 16A

(1) 32A

(6) 8A

Installed DC Breakers

(1) 100A Main

(13) 15A

• Voltage 230v - 12V DC

• All AC and DC buses installed and fully pre-wired

• Label backlighting pre-installed

• ON - indicating LEDs installed in all circuit positions

• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch

• Maximum panel amperage - 100 Amperes AC, 50 Amperes DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guid	https://productimageserver.com/literature/quickGuide/20721QG.pdf
Owners Manual	https://productimageserver.com/literature/ownersManual/20721OM.pdf

Brand: Blue Sea Systems

UPC: 632085081867

Harmonization Code: 8537.10.90.00

Model Number: 8186

Length:

Height:

Width:
