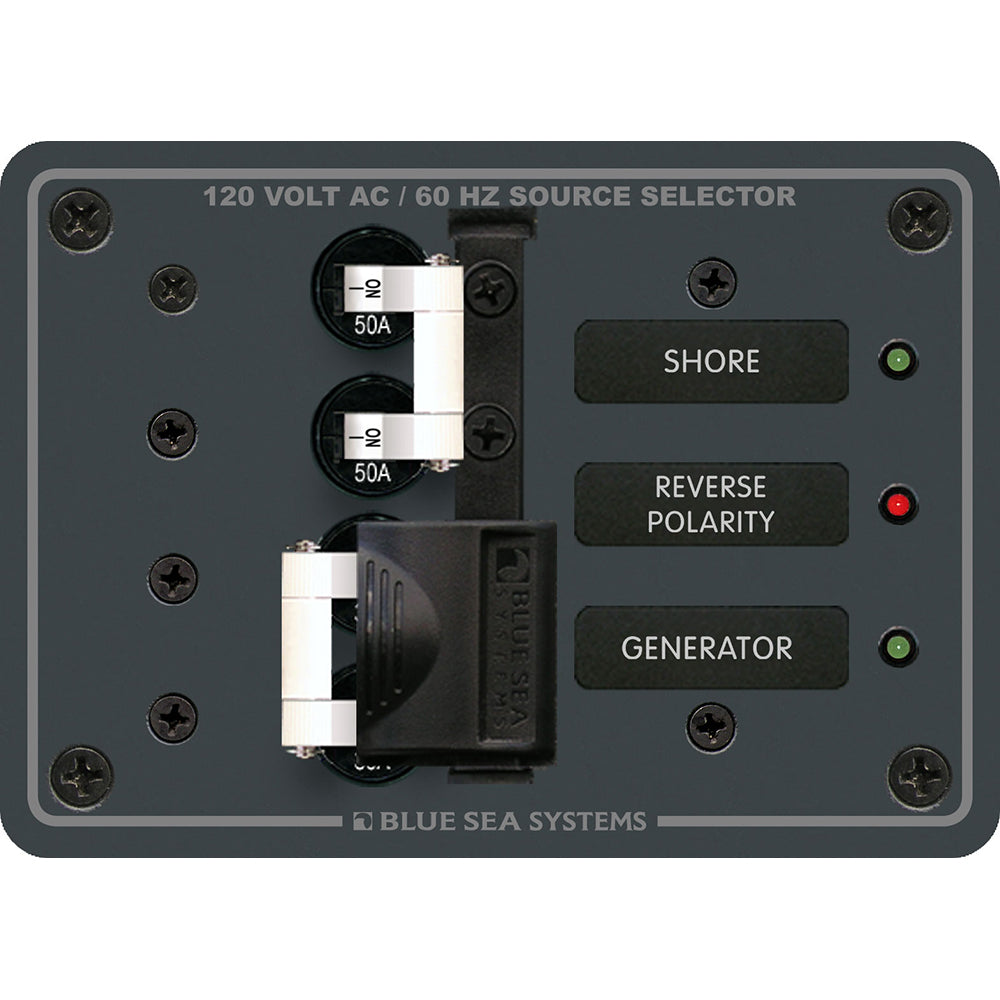

Blue Sea 8061 AC Toggle Source Selector 120V AC - 50AMP

8061 AC Toggle Source Selector 120V AC - 50AMP

Features:

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage - 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Source Selection: 2
• Nominal Voltage: 120v AC
• Height: 3.75"
• Width: 5.25"
• Weight: 1.84 lbs

Included:

• (2) 7242 A-Series White Toggle Circuit Breaker - Double Pole 50A
• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (1) 8034 LED - 120v AC Green
• (1) 8066 LED - 120v AC Red

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brand: Blue Sea Systems

UPC: 632085080617

Harmonization Code: 8537.10.90.00

Model Number: 8061

Weight: 1.4

Length: 9

Height: 5

Width: 7
