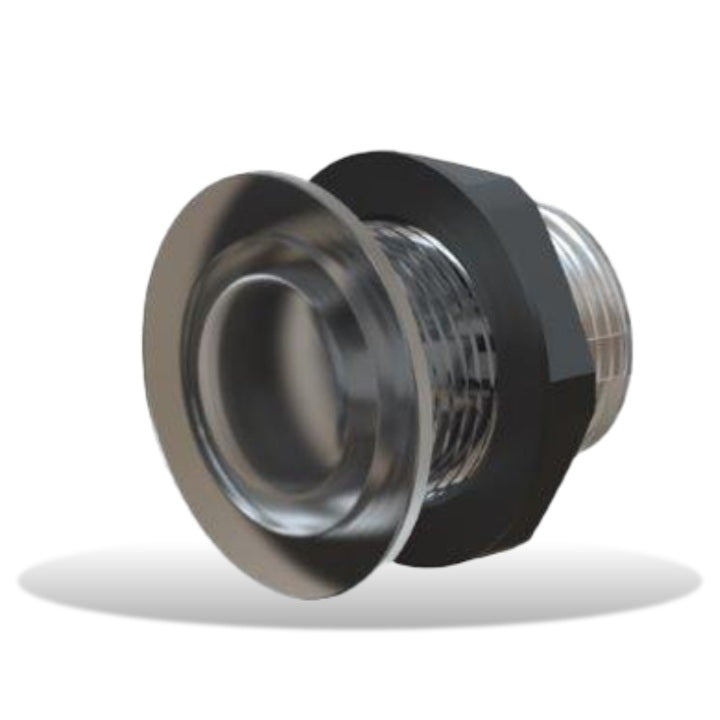

Lumishore Eclipse CL30 Blue & White Courtesy Light 12/24vDC

Lumishore Eclipse CL30 Blue & White Courtesy Light 12/24vDC

Model: CL30

ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations and other design elements of a boat. Available in dual color blue and white and two other color options.

Constructed of a durable clear acrylic body, completely water sealed and IP67 rated.

Measuring 33mm (1.3") in diameter, ECLIPSE Courtesy Lights are small, discreet and easy to install with a 2 wire hookup, flush mountable and fit almost anywhere onboard.

Specifications

Available Colors	Blue and White (5000 K)
LED Type	3 x 0.5W Blue LEDs / 3 x 0.5W White LEDs
Customer Control Options	On/Off Switch or ECLIPSE Command Center
Electrical Installation	Simple 2 Wire Installation
Supply Voltage Range	12V DC Only (10 - 15V DC)
Max Current Draw (12/24V DC)	0.1A
Ingress Protection	IP67
Front Diamater (Bezel)	33mm (1.3")
Profile	3.5mm (0.137")
Hole Diameter for fitting	25.4mm (1.0")
Mechanical Installation	Bulkhead Panel Mount (with marine adhesive)
Warranty	3 Years

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Brand: Lumishore

UPC: 847772003576

Model Number: 010-04470-00

Weight: 1.000000
